Advantech AIMB-503 - Inverter Power Output (INV1); LVDS Connector (LVDS1); B.22 Inverter Power Output (INV1)

AIMB-503 User Manual 96

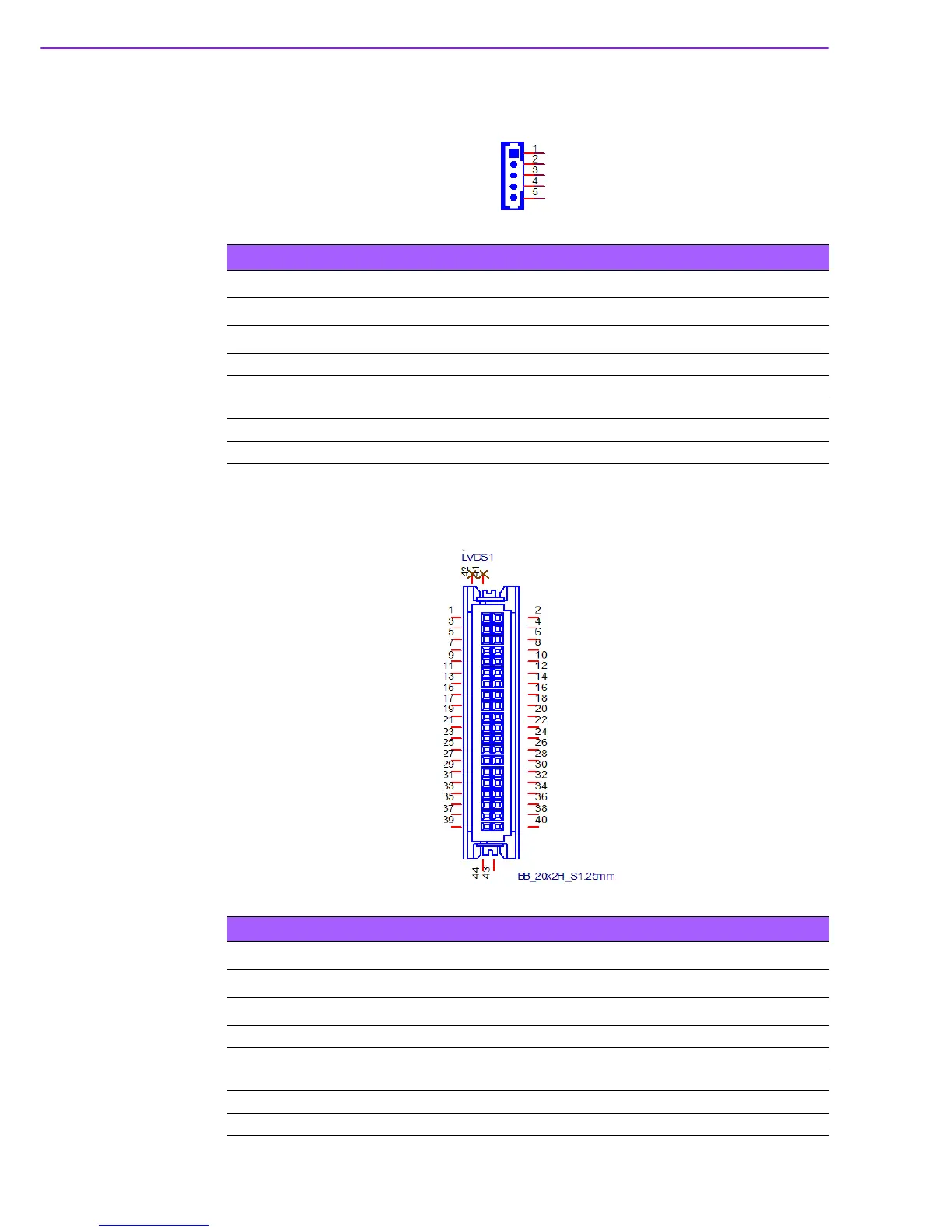

B.22 Inverter Power Output (INV1)
B.23 LVDS Connector (LVDS1)
Table B.23: Inverter Power Output (INV1)
INV1 Inverter Power Output
Part Number 12GA1655000453
Pin Pin Name
1+12V
2GND
3 ENABKL
4VBR
5+5V
Table B.24: LVDS Connector (LVDS1)
LVDS1 LVDS connectror
Part Number 12GS1600024H03
Pin Pin Name
1 VDD_LVDS1
2 VDD_LVDS1
3GND
4GND
5 VDD_LVDS1
