AIMB-503 User Manual 52
 CPU Warning Temperature
Use this to set the CPU warning temperature threshold. When the system CPU
reaches the warning temperature, the buzzer will beep.
 ACPI Shutdown Temperature
This screen allows users to set the CPU temperature at which the system will
automatically shut down to prevent the CPU from overheating damage.
3.4 Chipset Configuration Setting
Select the chipset tab from the BIOS setup screen to enter the Chipset Setup screen.
Users can select any item in the left frame of the screen, such as PCI express Con-
figuration, to go to the sub menu for that item. Users can display a Chipset Setup
option by highlighting it using the <Arrow> keys. All Chipset Setup options are

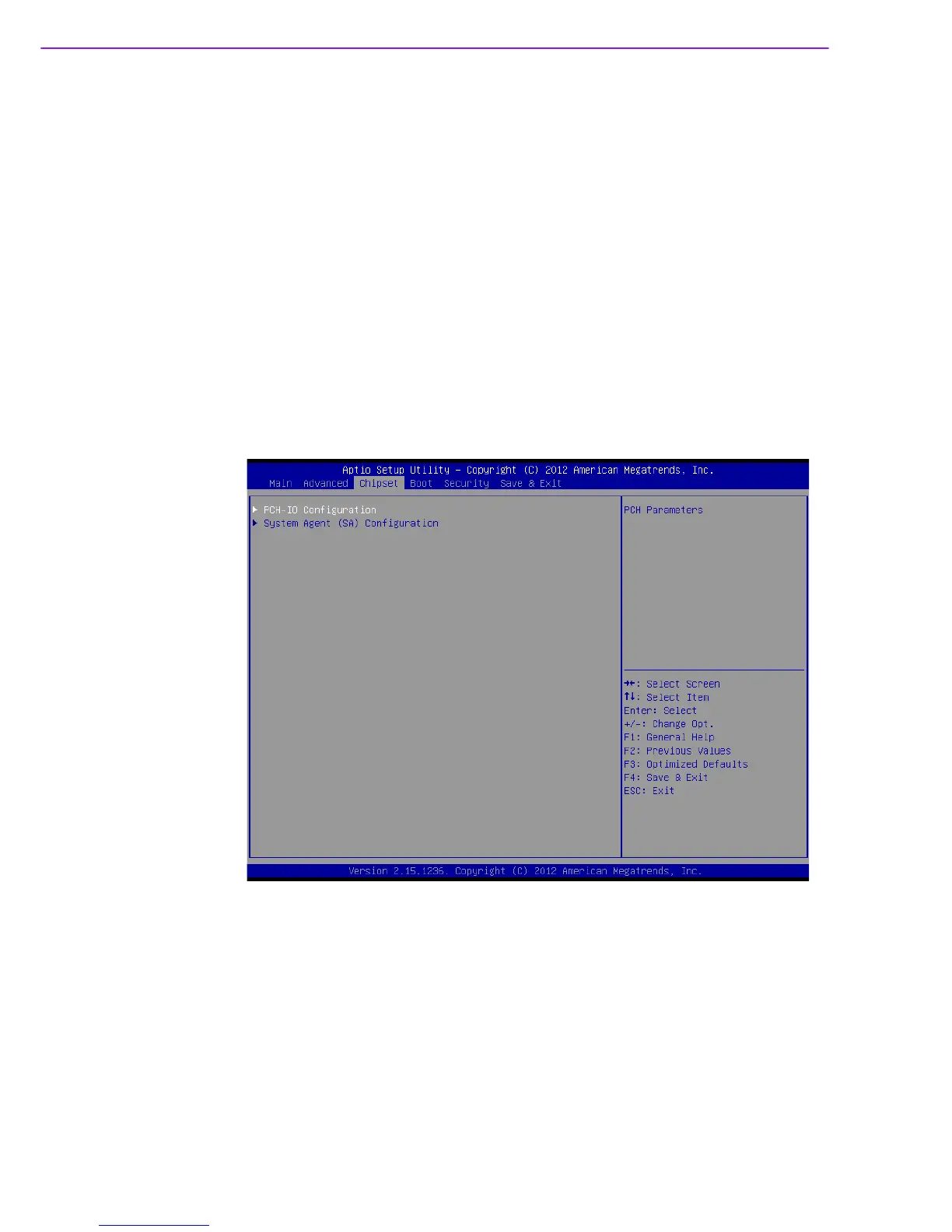

described in this section. The Chipset Setup screens are shown below. The sub
menus are described on the following pages.
3.4.1 PCH-IO Configuration
