21 AIMB-503 User Manual
Chapter 2 Connecting Peripherals

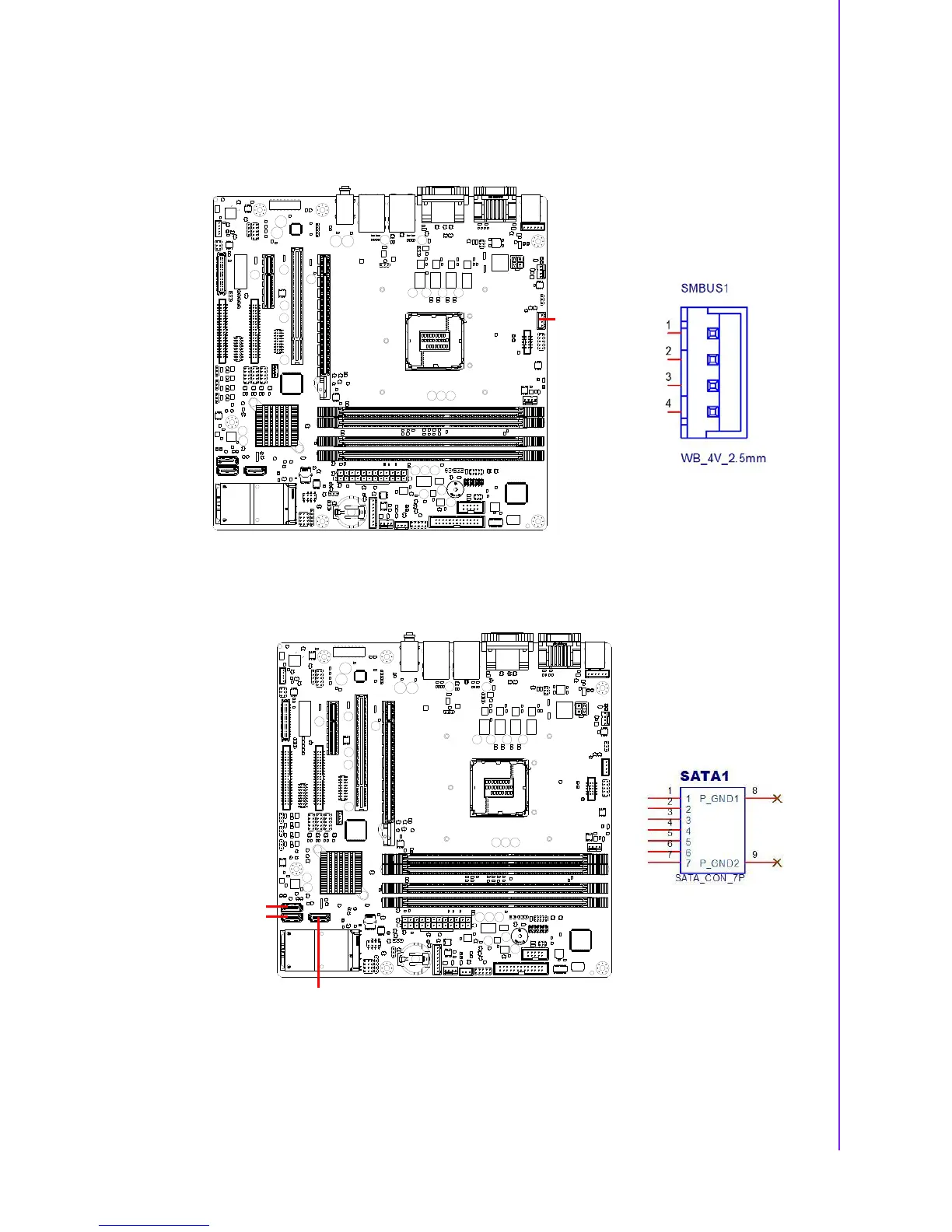

2.11 SMBUS Header (SMBUS1)
AIMB-503 provides SMBUS connector for customer connection to SMBUS protocol
embedded device. It can be configured to I2C by customer's request.
2.12 Serial ATA Interface (SATA1 ~ SATA3)
AIMB-503 features a high performance Serial ATA interface (up to 600/300 MB/s)
which eases hard drive cabling with thin, space-saving cables.
