AIMB-503 User Manual 28

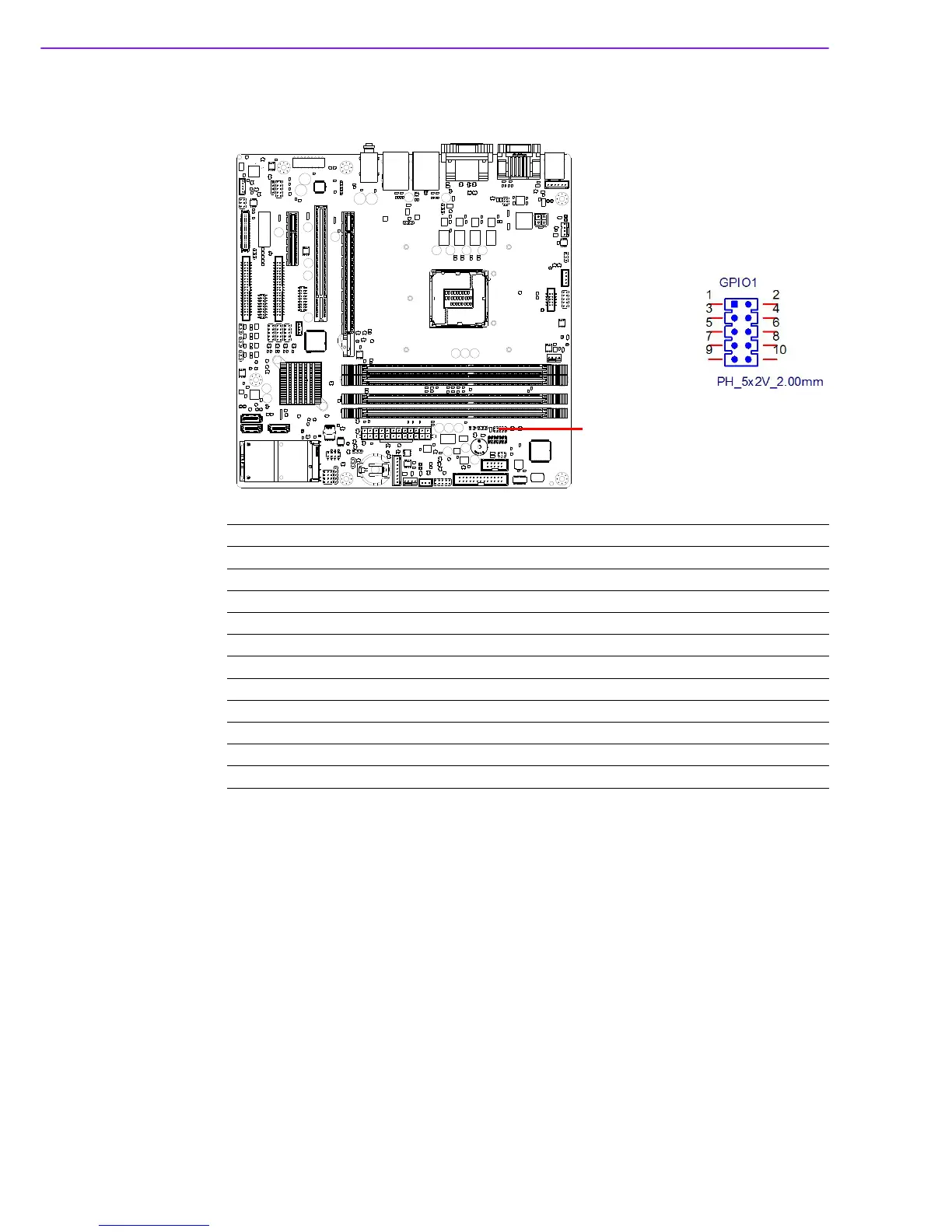

2.20 General Purpose I/O Connector (GPIO1)
GPIO1 GPIO connector
Pin Pin Name
1 SIO_SPIO0
2 SIO_SPIO1
3 SIO_SPIO2
4 SIO_SPIO3
5 SIO_SPIO4
6 SIO_SPIO5
7 SIO_SPIO6
8 SIO_SPIO7
9VCC_GPIO
10 GND
GPIO1
