85 AIMB-503 User Manual
Appendix B I/O Pin Assignments

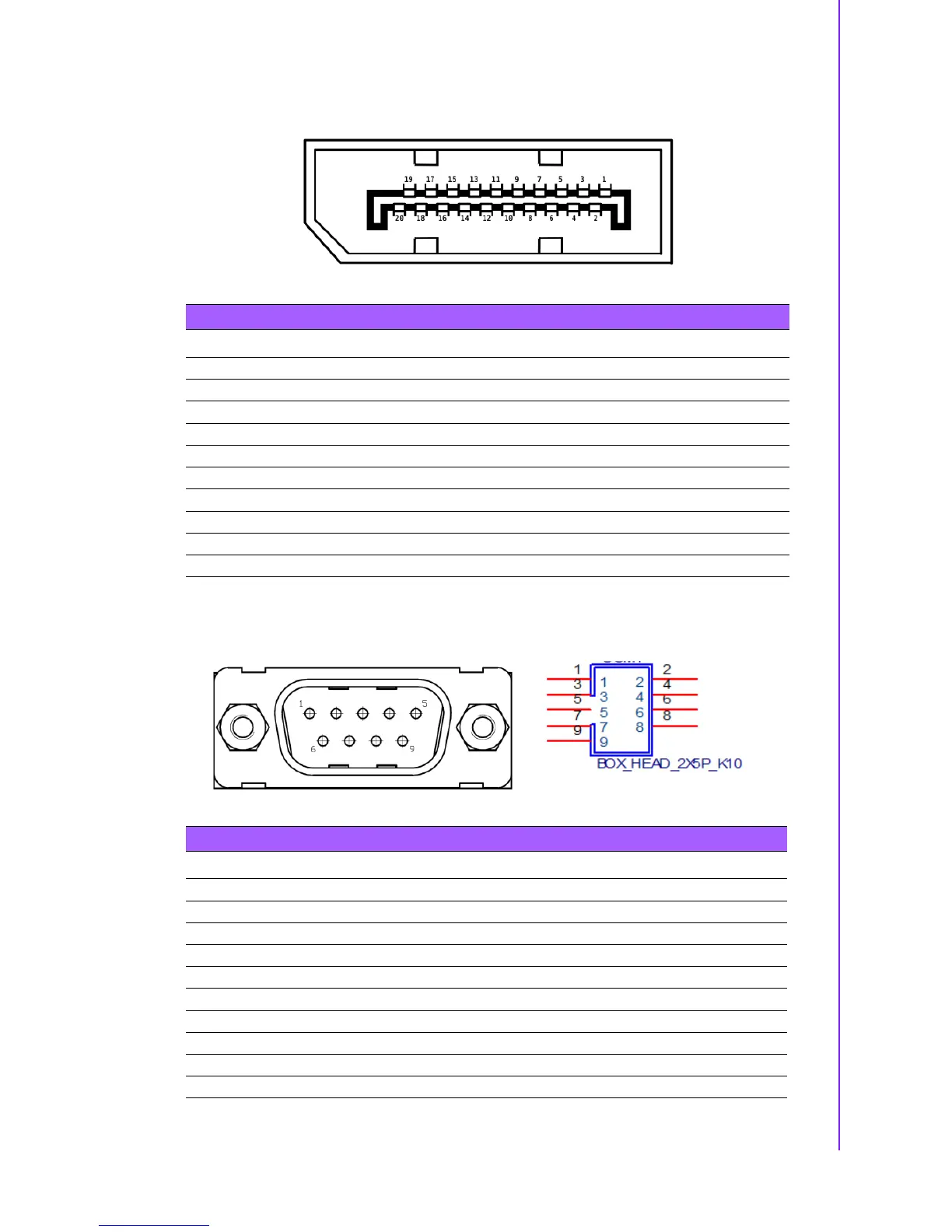

B.5 Display Port Connector (DP1)
B.6 COM Port Connector (COM2)
COM2
Table B.5: Display Port Connector (DP1)
Pin Signa Pin Signal
1 Lane 0+ 2 GND
3 Lane 0- 4 Lane2+
5 GND 6 Lane 2-
7 Lane 2+ 8 GND
9 Lane 2- 10 Lane 3+
11 GND 12 Lane 3-
13 DP_DETECT 14 GND
15 AUX+ 16 GND
17 AUX- 18 DP_HPD
19 GND 20 +3.3V
Table B.6: COM Port Connector (COM1)
COM1 COM Port Connector
Pin Signal
1 DCD#
2 RXD
3 TXD
4 DTR#
5 GND
6 DSR#
7 RTS#
8 CTS
9 RI#
