AIMB-503 User Manual 60

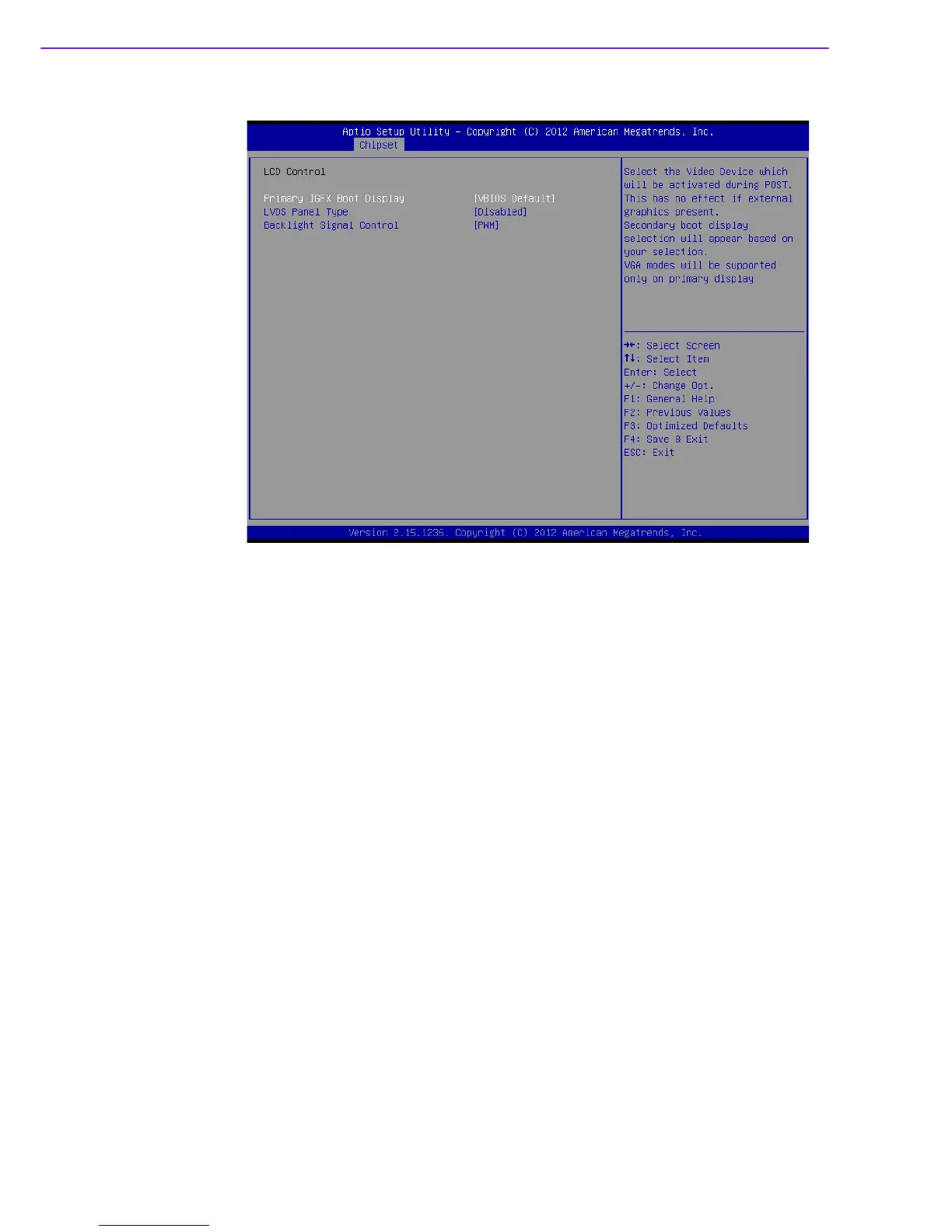

3.4.4.1 LCD Control configuration
 Primary IGFX Boot Display
This items allow users to select the video device which will be activated during
post. The available options are VBIOS Default, VGA1, LVDS/VGA2, DVI.
 LVDS Panel Type:
1024 x 768 18-bit
1024 x 768 24-bit
1280 x 1024 48-bit
1366 x 768 24-bit
 Backlight Signal Control
Backlight signal mode select.
