1.2 THE FUNCTION BUTTONS
1 2 3
4 5 6

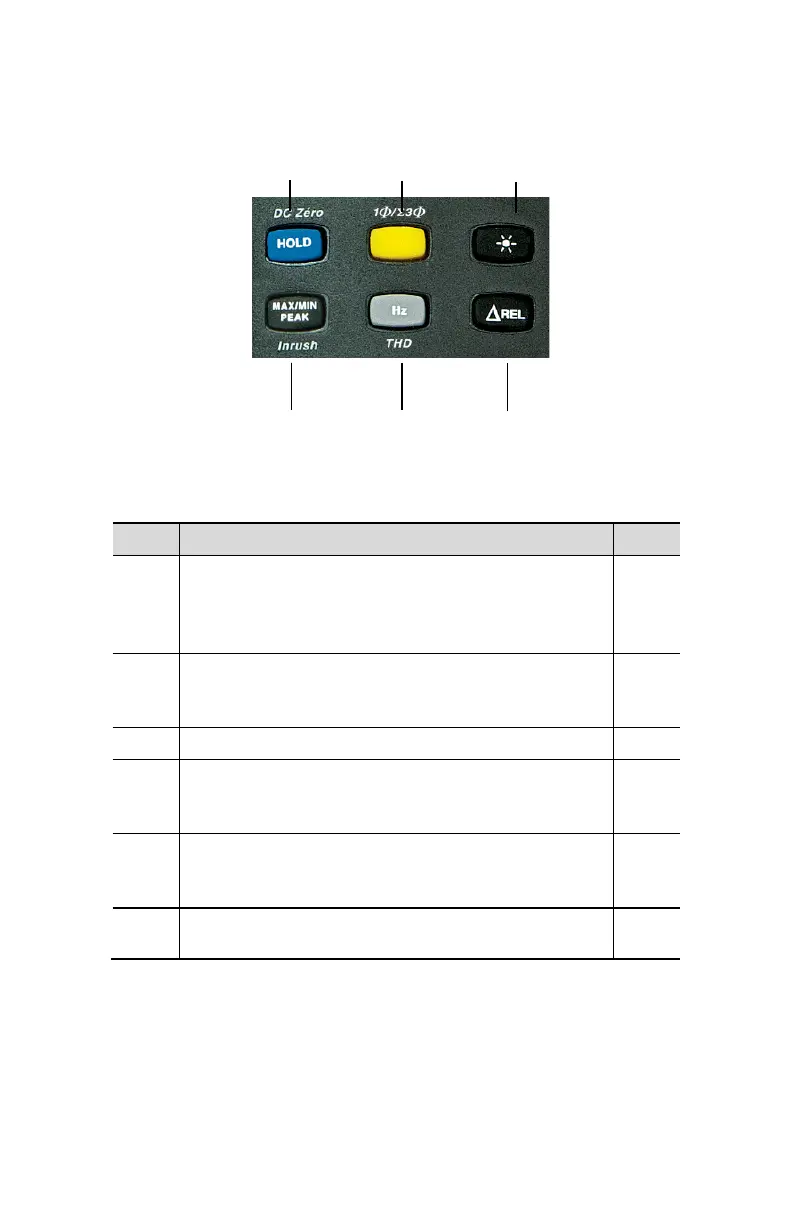

Figure 3: The Function Buttons
Item Function See §
1 Holds the last value on the display
Zero correction A
DC
/A
AC+DC
/W
DC
/W
AC+DC
Lead resistance compensation in the continuity and
ohmmeter functions
2.1
3.9.2
3.6.1
2 Selects the type of measurement and configuration
functions (AC, DC, AC+DC)
Selection of single-phase or 3-phase measurement
2.2
3 Enables/disables display backlighting 2.3
4 Enables/disables the MAX/MIN/PEAK mode
Enables/disables the True InRush
®
mode in current
measurement (A)
2.4
5 Performs Frequency measurements (Hz) and selects
measurement of harmonic distortion (THD)
Display of the powers W, VA, var and PF
2.5
6 Activation of ΔREL mode – Displays differential and
relative values
2.6
