8.3. DIMENSIONS RECOMMEN-
DED FOR THE NICHE
1. Creation of a niche
2. Installing pipes and cables
3. Assembly of the installation frame and
the surrounding frame
4. Fixing the dehumidifier
5. Execution of the hydraulic and electrical
connections
6. Assembly of the grille
The cassaforma system is always sup-
plied separately, disassembled. For as-
sembly, follow the instructions given in
the diagram, using the screws supplied.
ATTENTION
Use protective gloves: possible sharp
edges.
The package also contains the surroun-
ding frame and the front panel.
Once the cassaforma system compo-
nents have been removed, close the
cardboard packaging paying attention
to keep the surrounding frame and
front panel integral.
Before wall-recessing the cassaforma
system, after having made a suitable
niche in the wall, open the pre-cut ele-
ments on the side to ease fixing.
Insert the cassaforma system into the
niche.

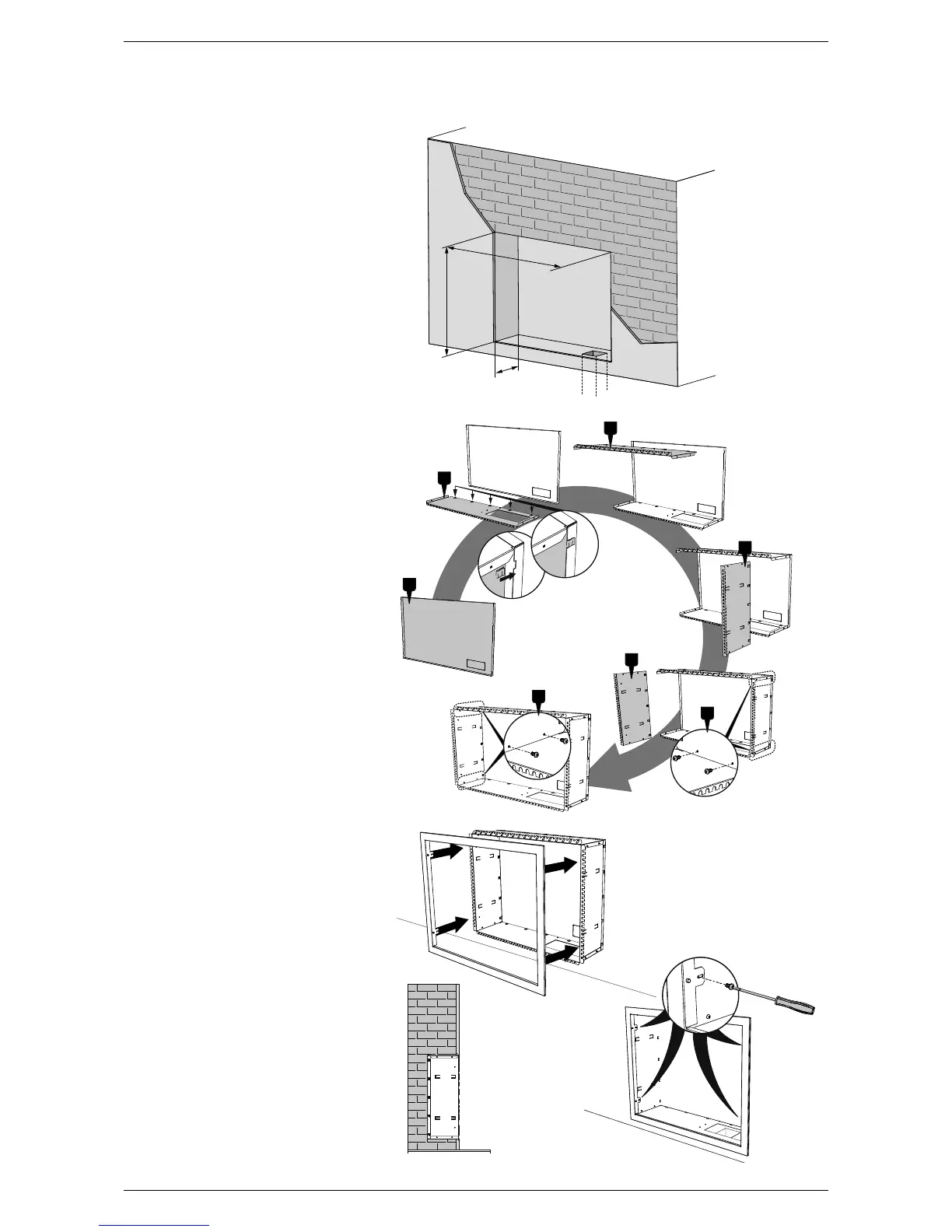

8.3.1. ASSEMBLY OF THE FRONT
FRAME
Insert and fix the cassaforma system
into the wall niche.
Carry out filling and plaster the wall.
NOTE
The front profile of the cassaforma
system must be flush with the fini-
shed plaster of the wall. Use appro-
priate filling and finishing material.
DO NOT DEFORM THE CASSAFOR-
MA SYSTEM. THE CASSAFORMA SY-
STEM IS NOT A SUPPORTING STRUC-
TURE!
Now it is possible to fix the front frame.
Follow the illustrated phases and use
the screws supplied.
Now insert the dehumidifier into the
cassaforma system.
The recess unit is designed for inser-
