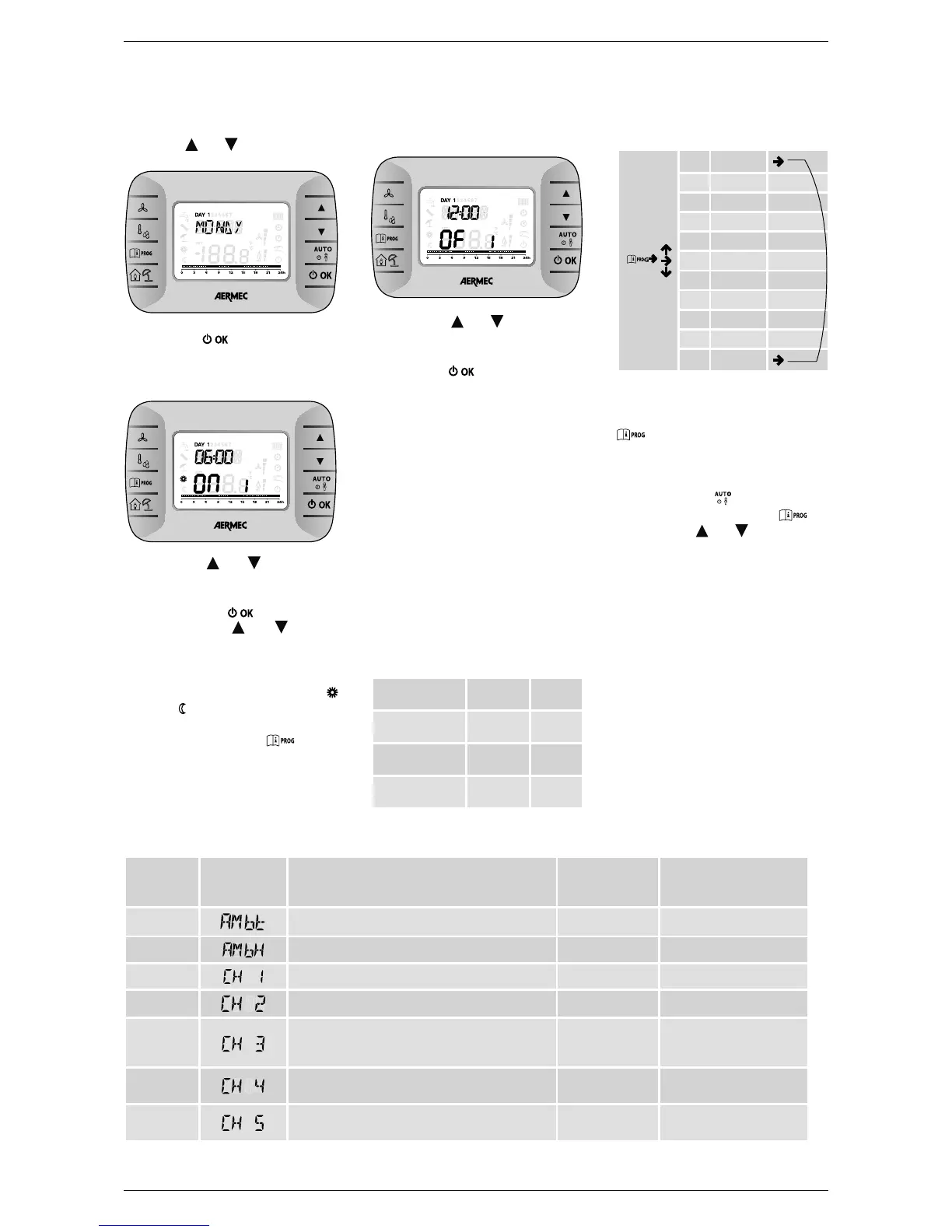

21
1. Select a day of the week (1…7) acting
on the
and keys;
2. Press the key.
3. The display shows on 1 and the
four numbers of the time flashing;
4. Act on the
and
keys to set the
time of the start of the period with 10
min. step;
5. Press the key
. During the set-
ting, act on the
and keys
, It is
possible to decide whether the period
will function in COMFORT or in ECO-
NOMY (the level selected is indicated
by the flashing of the respective
ande
symbol). Programming can be
interrupted and go back to the main
screen by pressing the
;
6. The display shows of 1 and the four
numbers of the time flashing;
7. Act on the
and keys
keys to set
the time of the switch-off of the period
with 10 min. step
8. Press the
key;
9. Repeat the same operations from
point 4 to set the remaining three
time periods;
NOTE
by setting the period start phase, on… at
the same time as the period end, of… the
time period is annulled and the program-
ming passes to the next period.
(e.g. on1=09:00 – of1=09:00 the pro-
gram “skips” the time period 1 continuing
with on2…).
10.6.2. Groups of days
This function allows to program 4 common
start and end time periods for the applian-
ce for several days or the entire week (as
stated in the following summary table).
MO-FR "MO-FR"
GROUP
day 12345
from monday
to friday
SA-SU "SA-SU"
GROUP
day 67
saturday and
sunday
MO-SA "MO-SA"
GROUP
day
123456
from monday
to saturday
MO-SU "MO-SU"
GROUP
day
1234567
every day
DAY 7
6
5
4
3
2
1
1234567
DAY 123456
DAY 67
DAY 12 34 5
10.7. INFORMATION WINDOW
To enter the information mode hold the
key down for 3 seconds:
This menu allows to change the unit of mea-
surement of the temperature, passing from
degrees Celsius (°C) to degrees Fahrenheit
(°F) by pressing the
key.
To exit the INFO mode, press the
key.
Scroll using the
and keys
.
STRING CODE DESCRIPTION
PARAMETER
THAT CAN BE
MODIFIED
RANGE
AMB T Room temperature NO -40...100
AMB H Terminal room temperature probe NO 0..100
CH 1 Probe connected to the control device X5 - 1:2 input NO -20..70
CH 2
Probe connected to the control device X5 - 3:4 input NO -20..70
CH 3
NTC probe connected to the control device X6 - 1:2
input
NO
-20..70 if NTC
0 – 100% if 0-10V or
4-20mA probe
CH 4
0..10V probe connected to the X6 2:3 input of the
control device
NO 0-100%
CH 5
4.0.20mA probe connected to the X6 2:3 input of
the control device
NO 0-100%
