12
tion of pipes and cables inside the in-
stallation frame.
Pipes and cables must have a length
such to allow successive connections
to the dehumidifier.

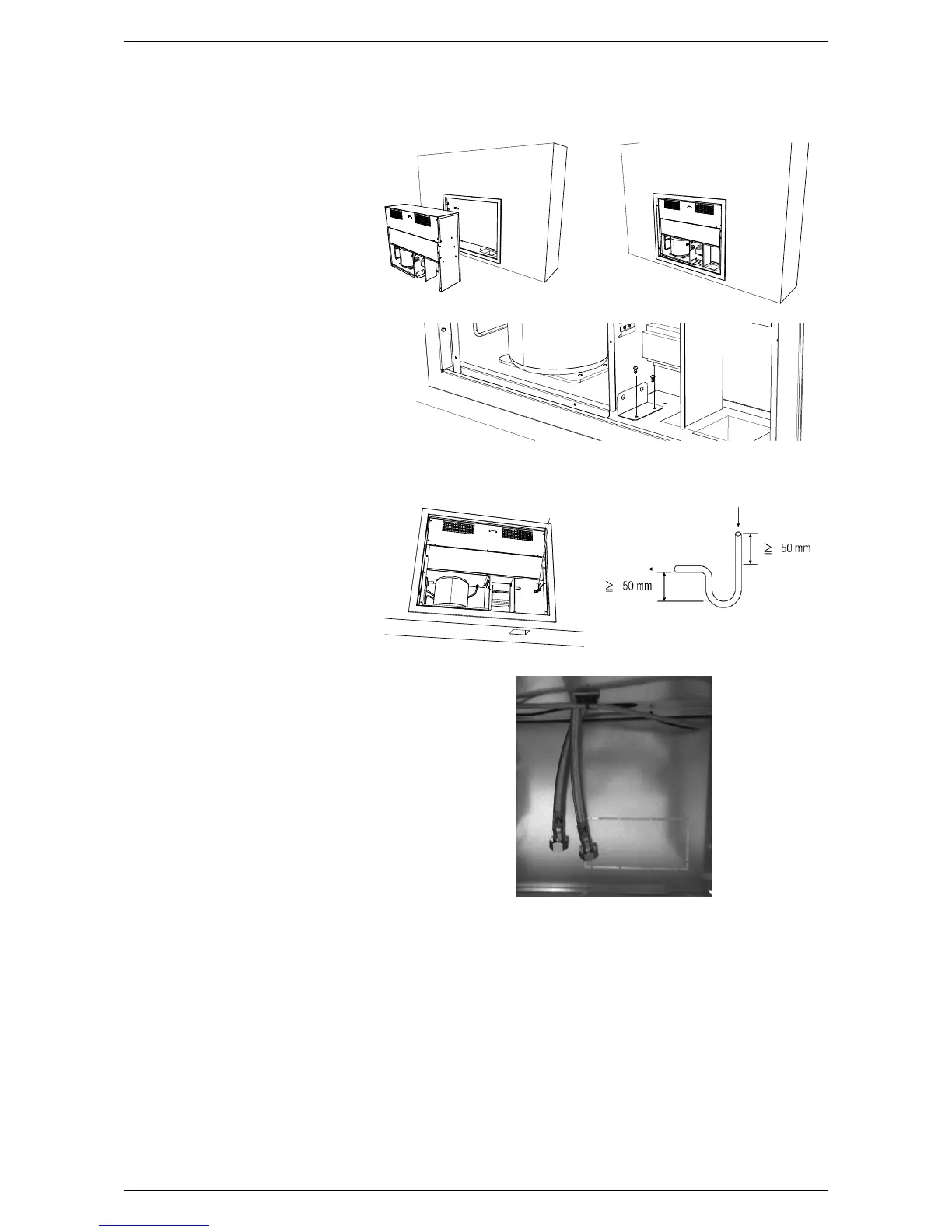

Fix the dehumidifier to the cassaforma
system using the supplied screws, as
indicated in the image on the right.
Prevent dirt or other from entering the
pipes. Protect the pipes during the as-
sembly phase of the installation frame.
Make the hydraulic and electric con-
nections after having mounted the de-
humidifier.
8.3.2. CONDENSATE DRAIN PIPE
CONNECTION
The connection of the condensate drain
on the dehumidifier must be made via
the rubber tube fixed to the fitting with
external diameter of 20 mm positioned
on the front panel of the unit. A siphon
must be realised in the drain line, as il-
lustrated in the figure.
8.4. HYDRAULIC CONNECTION TO
THE WATER COIL
The dehumidifier must be connected to
the refrigerated water plant in order to
guarantee the introduction of neutral
conditioned air into the environment.
The connection is made using the ½”
FEMALE attachments installed on the
unit.
Water inlet: “IN” label. Water outlet:
“OUT” label.
All hydraulic connections must be made
by qualified staff and in compliance with
local regulations in force.
Condensate
Drain
