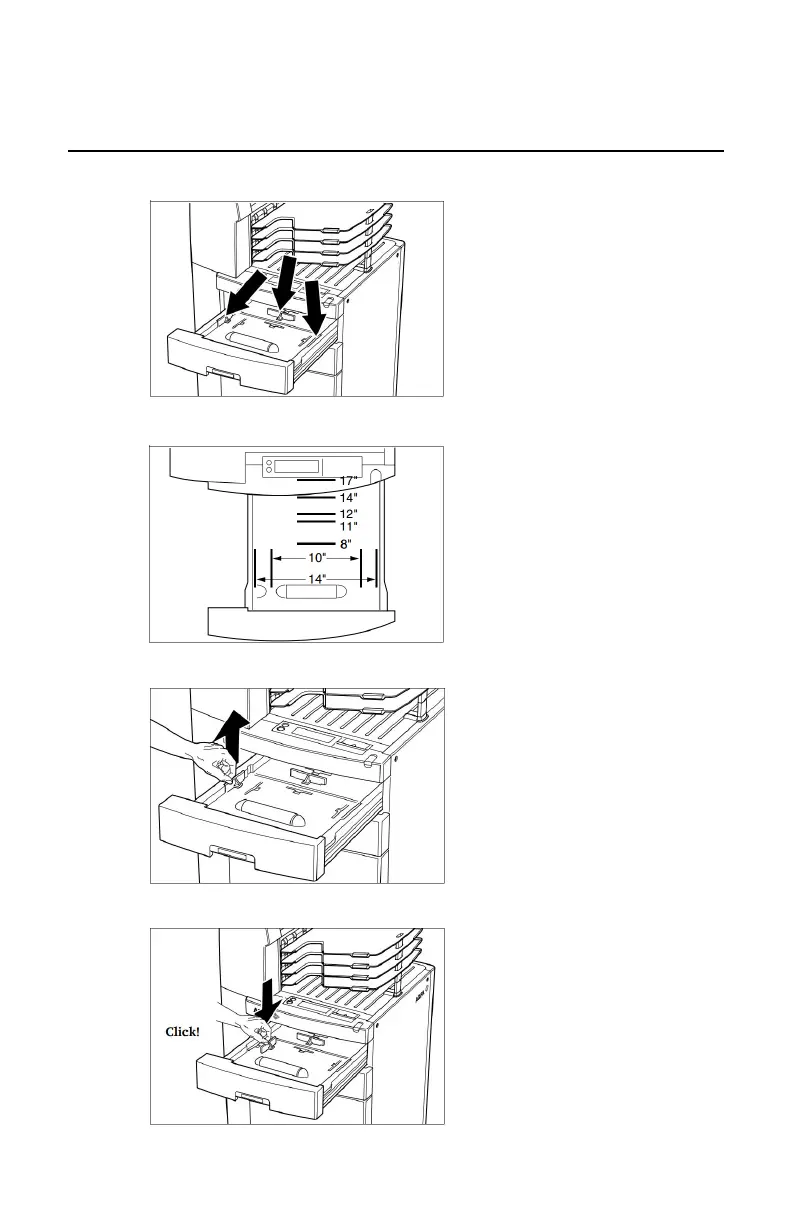

Verify film position tabs

1. Verify that film position tabs are installed correctly.

Possible film size settings:

2. Remove film position tab.

3. Put film position tab in place and push down until it locks.

Drystar 5500, Drystar 5503 | Plug & Play Installation Manual | 161

2901J EN 20191018 0826
