Chapter 6: Replacing Assemblies
To remove the logic analyzer cable
1 Remove power from the instrument
a In the session manager, select Shutdown.
b At the query, select Power Down.
c When the “OK to power down” message appears, turn the instrument
off.
d Disconnect the power cord.

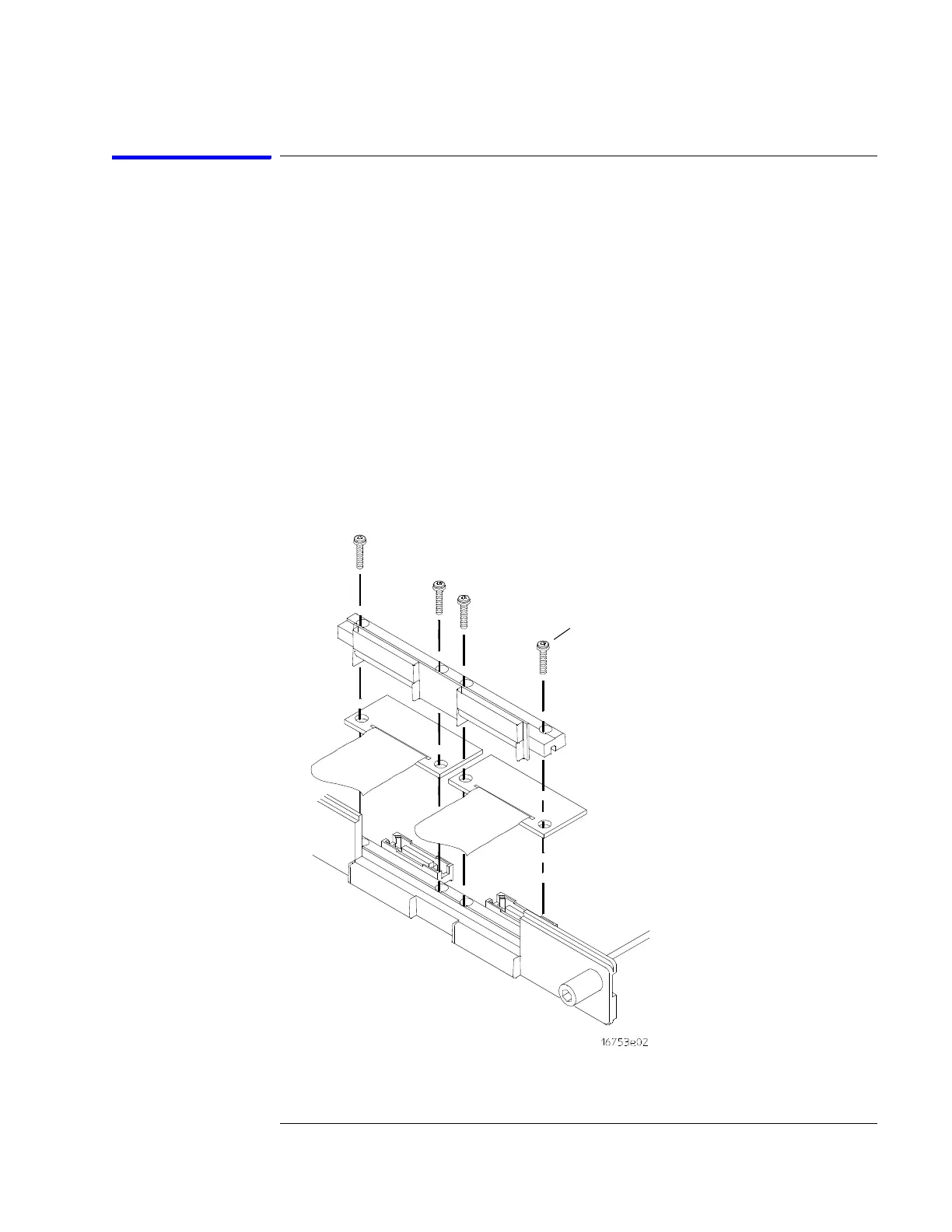

2 Remove the logic analyzer cable clamp.
a Remove four screws that secure the logic analyzer cable clamp to the
outside rear panel.
b Remove the cable clamp from the rear panel.
H4
