Chapter 3: Testing Logic Analyzer Performance
Test Pod 1 in 300 Mb/s Mode
Test Pod 1 in 300 Mb/s Mode
The steps that follow include pass/fail criteria.
Determine PASS/FAIL (1 of 2 tests)
1 PASS/FAIL: If an eye exists near -2.8 ns for every bit, and Eye Finder
places a blue bar in the narrow eye for each bit, then the logic analyzer
passes this portion of the test.
2 If an eye does not exist near -2.8 ns for every bit or Eye Finder can not
place the blue bar in the narrow eye, then the logic analyzer fails the test.
Record the failure in the appropriate place on the Performance Test
Record.

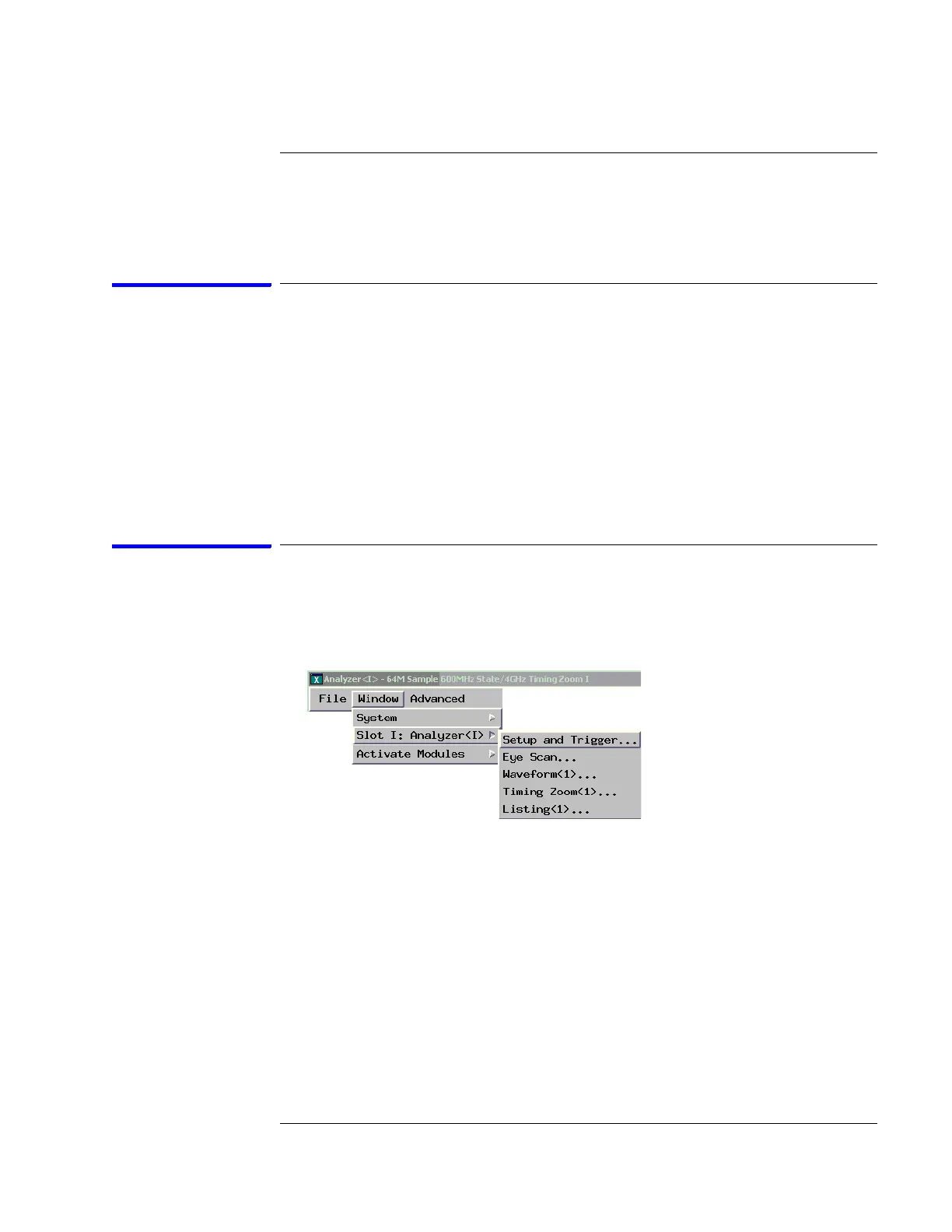

Open and configure the Listing window.
a In the Setup and Trigger window, select Window, then select Slot n:
Analyzer<n> (where n is the slot the module under test is installed). At
the pop-up menu, select Listing. The Listing window will appear.
