82
Chapter 3: Testing Logic Analyzer Performance
Test Pod 1 in 600 Mb/s Mode
position you chose on page 80 should remain open.
22 Perform the procedure “Determine PASS/FAIL (1 of 2 tests)” on page 46.
23 Select the Run Repetitive icon in the Listing window.
24 Perform the procedure “Determine PASS/FAIL (2 of 2 tests)” on page 48.
Test the complement of the bits (Pod 1, 600 Mb/s mode)
Now test the logic analyzer using complement data.
1 On the 8133A pulse generator, in the PULSE setup for CHANNEL 2, select
COMP.
2 Note that the signal on the oscilloscope has moved. Change the
oscilloscope’s horizontal position to -450 ps (or as required) to center the
measured pulse on the oscilloscope display.
3 Verify the DC offset and adjust it if necessary. See page 32.
4 Deskew the oscilloscope if necessary. See page 33.
5 Verify that the pulse width is set to 1 ns. See page 35.

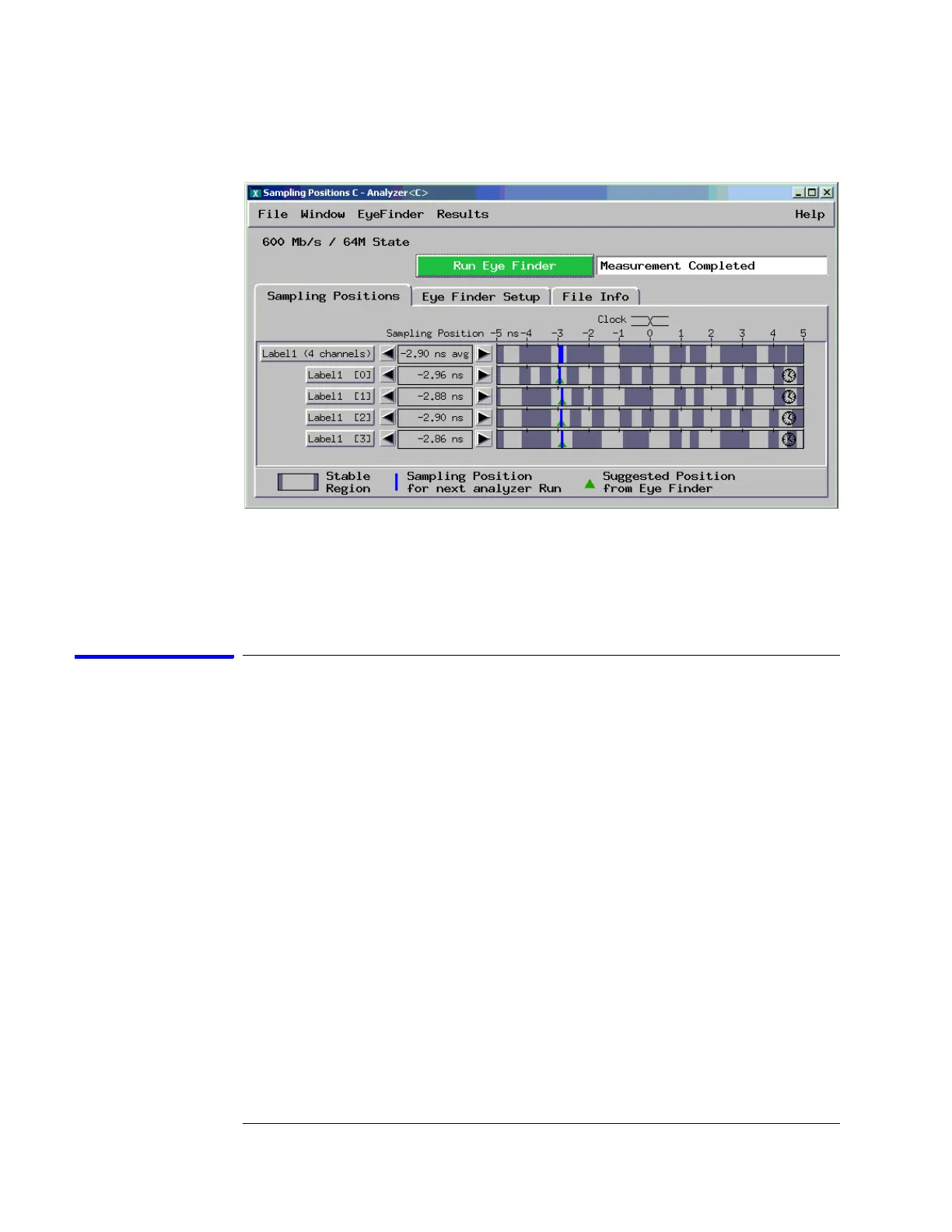

6 Run Eye Finder and align stray channels if necessary.
7 Perform the procedure “Determine PASS/FAIL (1 of 2 tests)” on page 71.
8 Select the Run Repetitive icon in the Listing window.
