Chapter 3: Testing Logic Analyzer Performance
Testing the Module Using a 16900-Series Mainframe
Configure the 16900-Series Logic Analysis System
1 Exit the logic analysis application (from the main menu, choose FileExit)
and then restart the application. This puts the logic analysis system into its
initial state.
2 Disable all logic analyzers other than the analyzer under test.

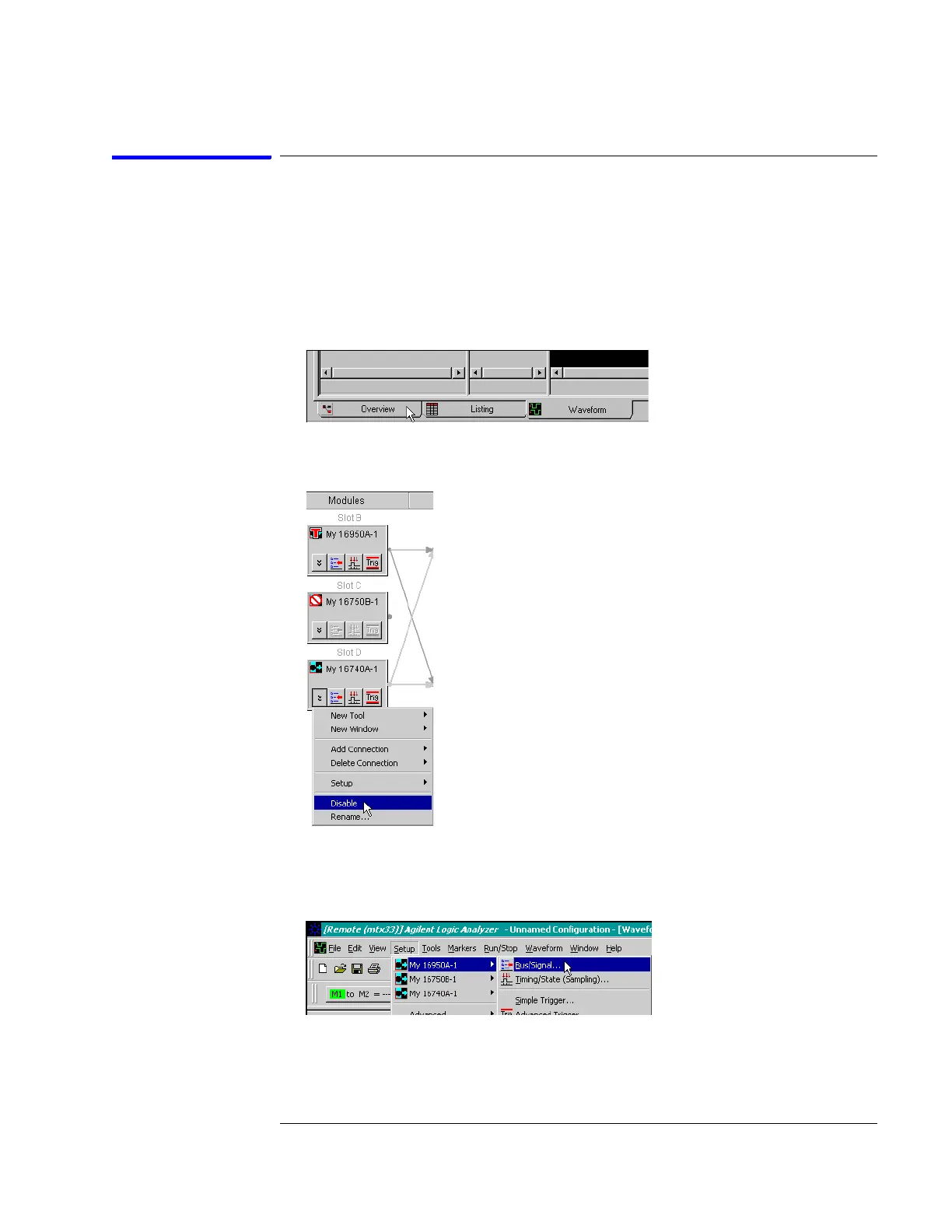

a Select the Overview tab at the bottom of the main window.
b Click on each unused logic analyzer and select disable. Only the logic
analyzer to be tested should remain enabled.
3 Set up the bus and signals.
a From the Logic Analysis System main menu, select SetupMy
16950ABus/Signal....
b In the Analyzer Setup window, choose the Threshold button for Pod 1.
The Threshold Settings window will appear.
