Agilent Technologies 16902A Service Guide

24
Chapter 3: Testing Logic Analyzer Performance
Assemble the SMA/Flying Lead Test Connectors

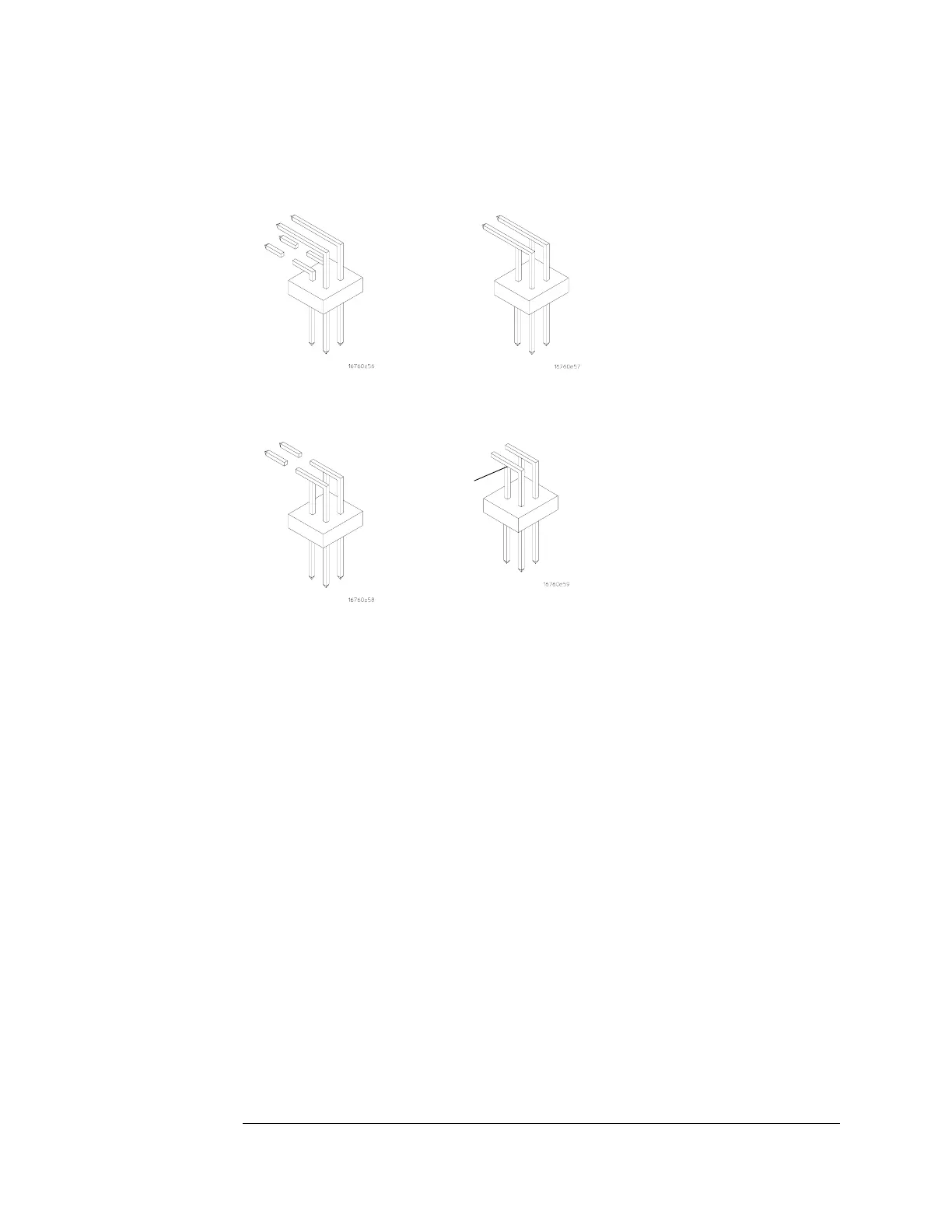

b Trim about 1.5 mm from the pin strip inner leads and straighten them
so that they touch the outer leads.
c Trim about 2.5 mm from the outer leads.
d Using a very small amount of solder, tack each inner lead to each outer
lead at the point where they are touching.
solder
