66
Chapter 3: Testing Logic Analyzer Performance
Testing the module using a 16700-series Mainframe

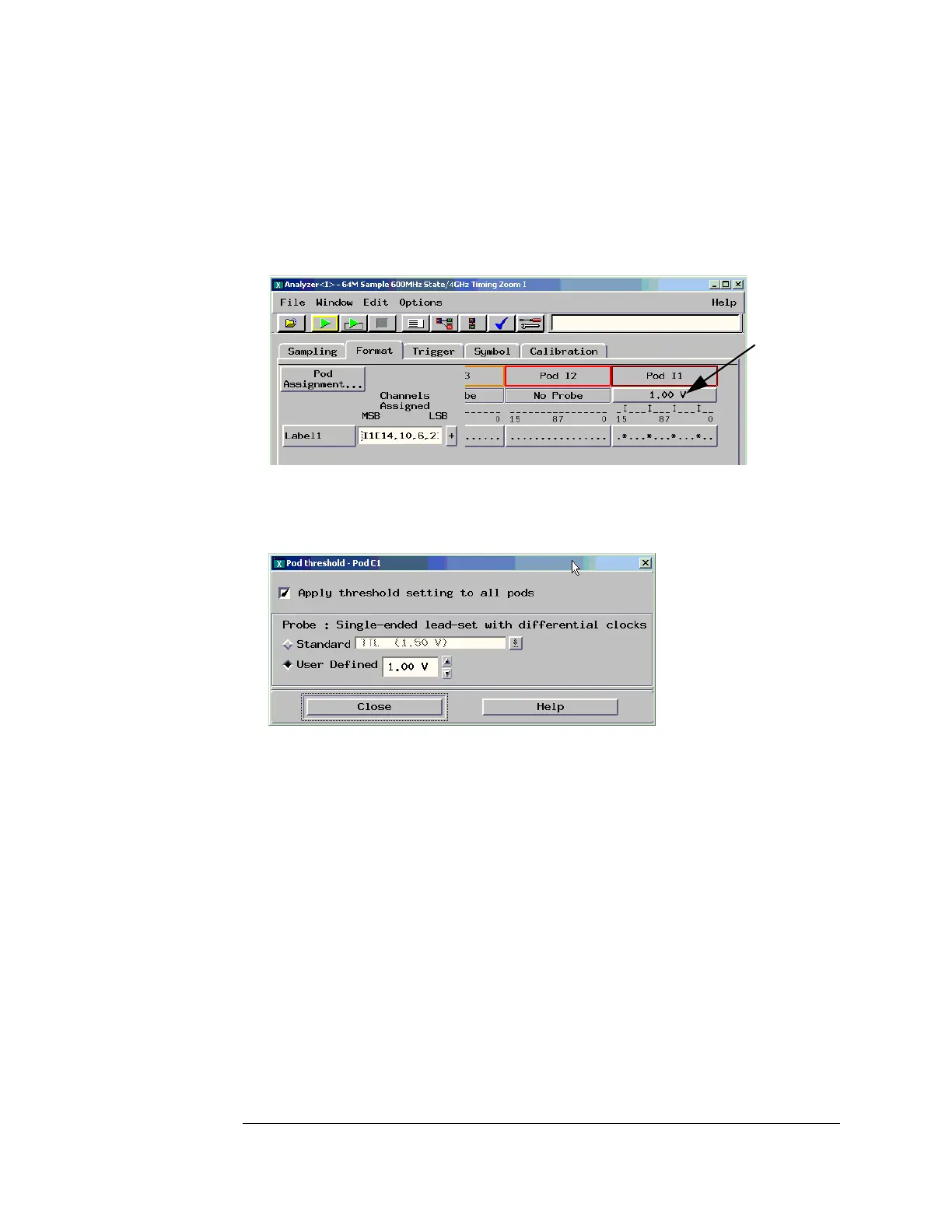

4 Configure the clock and data thresholds.
a Select the threshold field for the pod that you are going to test. The Pod
threshold window will appear. You must have the E5382A Flying Lead
Probe attached to the pod you will be testing so that the pod threshold
dialog will appear when you click on the pod threshold field.
b In the Pod threshold window, select User Defined and set the threshold
value to 1 volt. The “Apply threshold settings to all pods” check box
doesn’t matter.
c Select Close to close the Pod threshold window.
d Under the Format tab, use the scroll bar at the bottom of the window to
scroll to the left and select the “Clock thresh...” button. In the Clock
Thresholds window, select the J clock threshold field, then in the J
pod
threshold
field
