Interconnection Solutions Overview
Depending on your specific requirements, you can connect your DUT
to the 34980A using the following optional interconnection solutions.
See the 34980A Product Data Sheet for additional information.
Terminal Blocks Detachable terminal blocks are available for the
low- frequency modules and offer a flexible method for connecting
external wiring (300V rated). Each terminal block is customized for
a specific module (not available for RF and microwave modules).
Ordering Information: 349xxT (e.g., 34921T, 34922T, etc.)
Shielded Cables Standard cables are available for 50- pin D- sub and
78- pin D- sub connectors. Depending on the module and your specific
requirements, one or two cables may be required per module.
Ordering Information:
Y1135A (1.5 meters, 50- pin D- sub, 300V)
Y1136A (3 meters, 50- pin D- sub, 300V)
Y1137A (1.5 meters, 78- pin D- sub, 300V)
Y1138A (3 meters, 78- pin D- sub, 300V)
Solder Cup Connector Kits These connector kits are available if you want to
build your own custom cables.
Ordering Information:
Y1139A (50- pin D- sub female, 125V, for 34921/23/25/31/32/33/37/38)
Y1140A (78- pin D- sub female, 60V, for 34922/24)
Y1141A (50- pin D- sub male, 125V, for 34951/52)
Y1142A (78- pin D- sub male, 60V, for 34950)

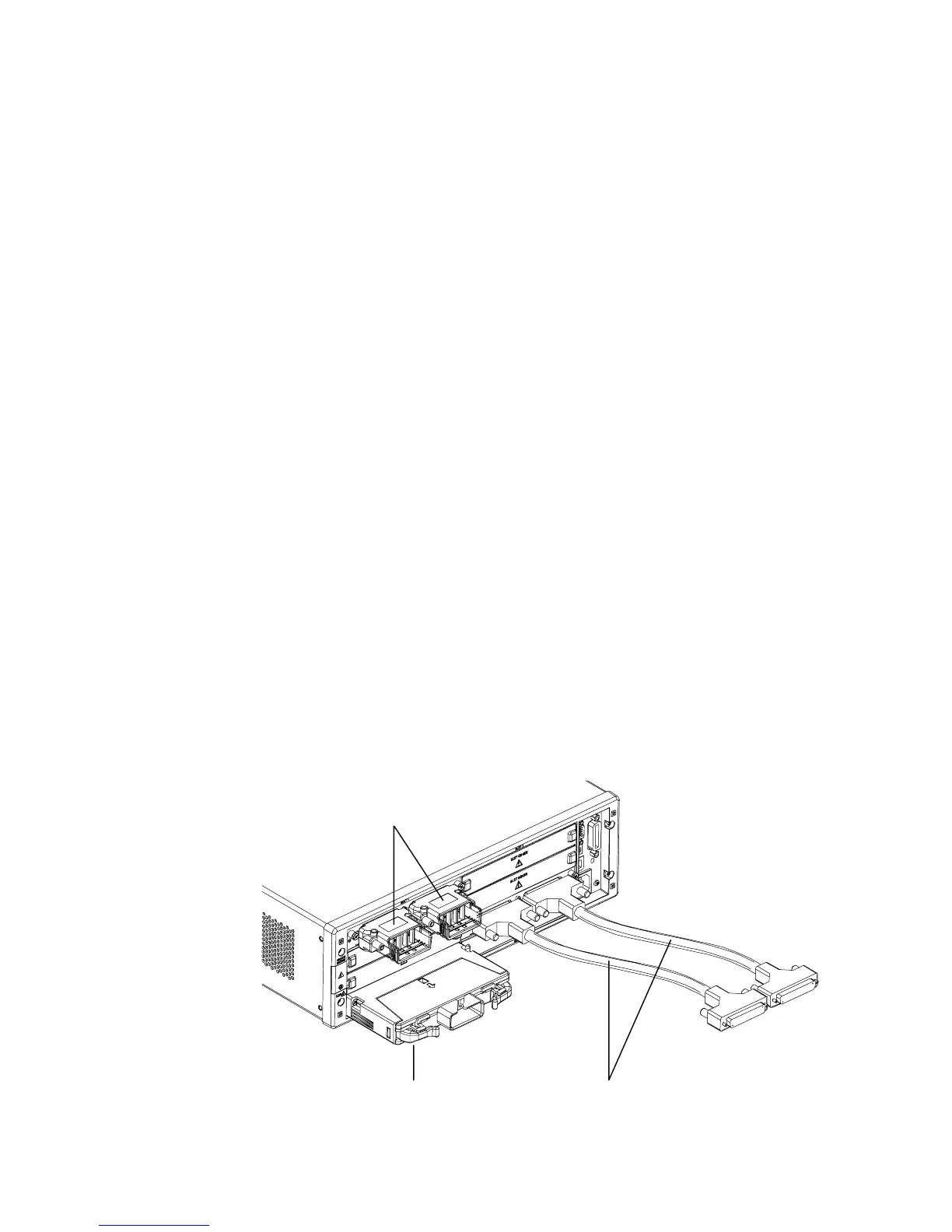

Solder Cup Connectors
(50- or 78-Pin D-Sub)
300V Shielded Cables
(50- or 78-Pin D-Sub)
349xxT Terminal Block
(Module Specific)
