194 34980A User’s Guide
6 General Purpose Switch Modules
34937T Terminal Block
This terminal block with screw- type connections is labeled with the
model number and the abbreviated module name. In addition, space is
available on the label for you to write the slot number.
The 34980A Product Reference CD (shipped with the instrument)
contains a 34937T Wiring Log for you to document your wiring
configuration for this module. You can open the wiring log file in
Microsoft® Excel® or Adobe® Acrobat® format
.

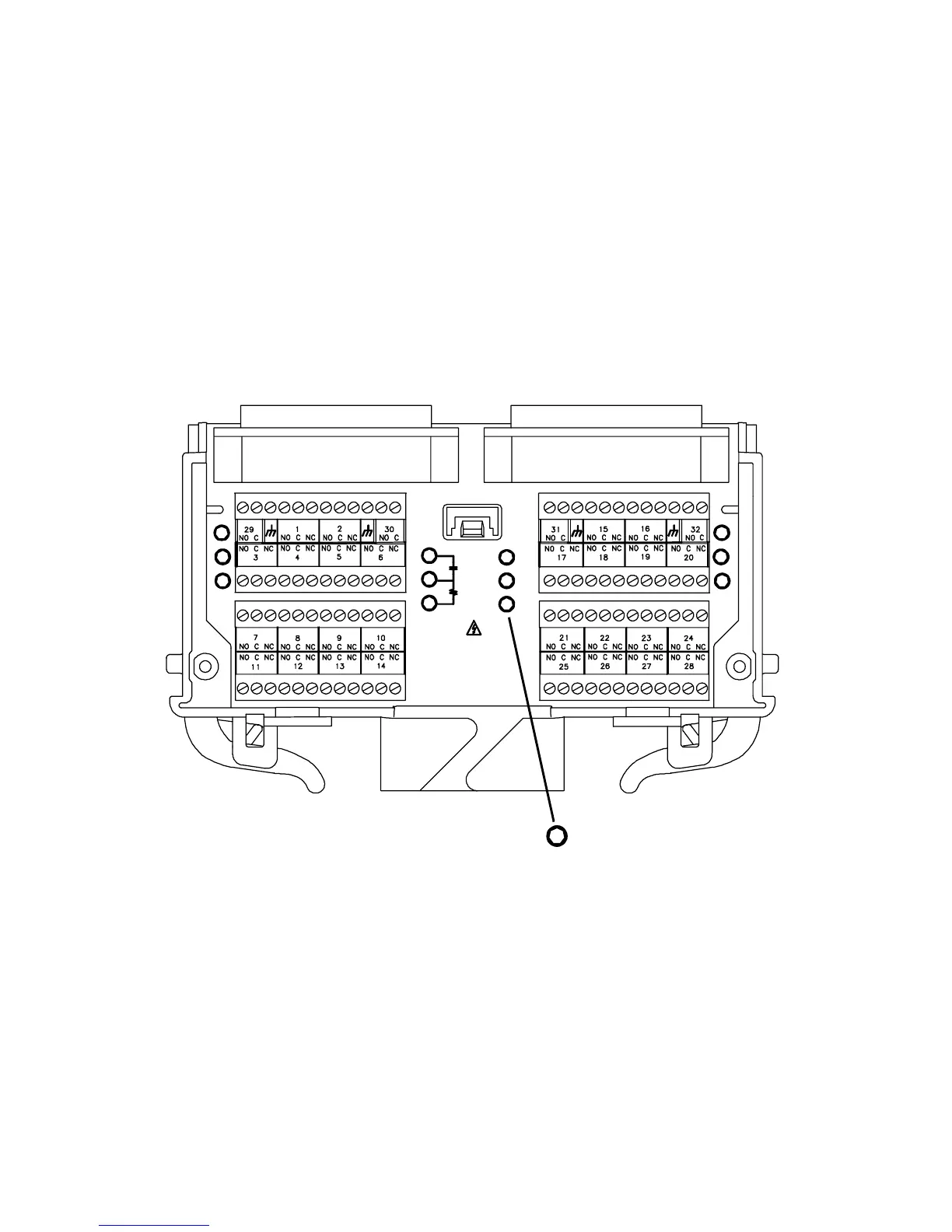

Pads for user-supplied snubber
circuity to alleviate reactive
transients. The circuits may
consist of resistors, capacitors,
varistors, or other elements as
needed to reduce the switching
voltage and current transients
inherent in reactive circuits.
