174 34980A User’s Guide
5 Matrix Switch Modules

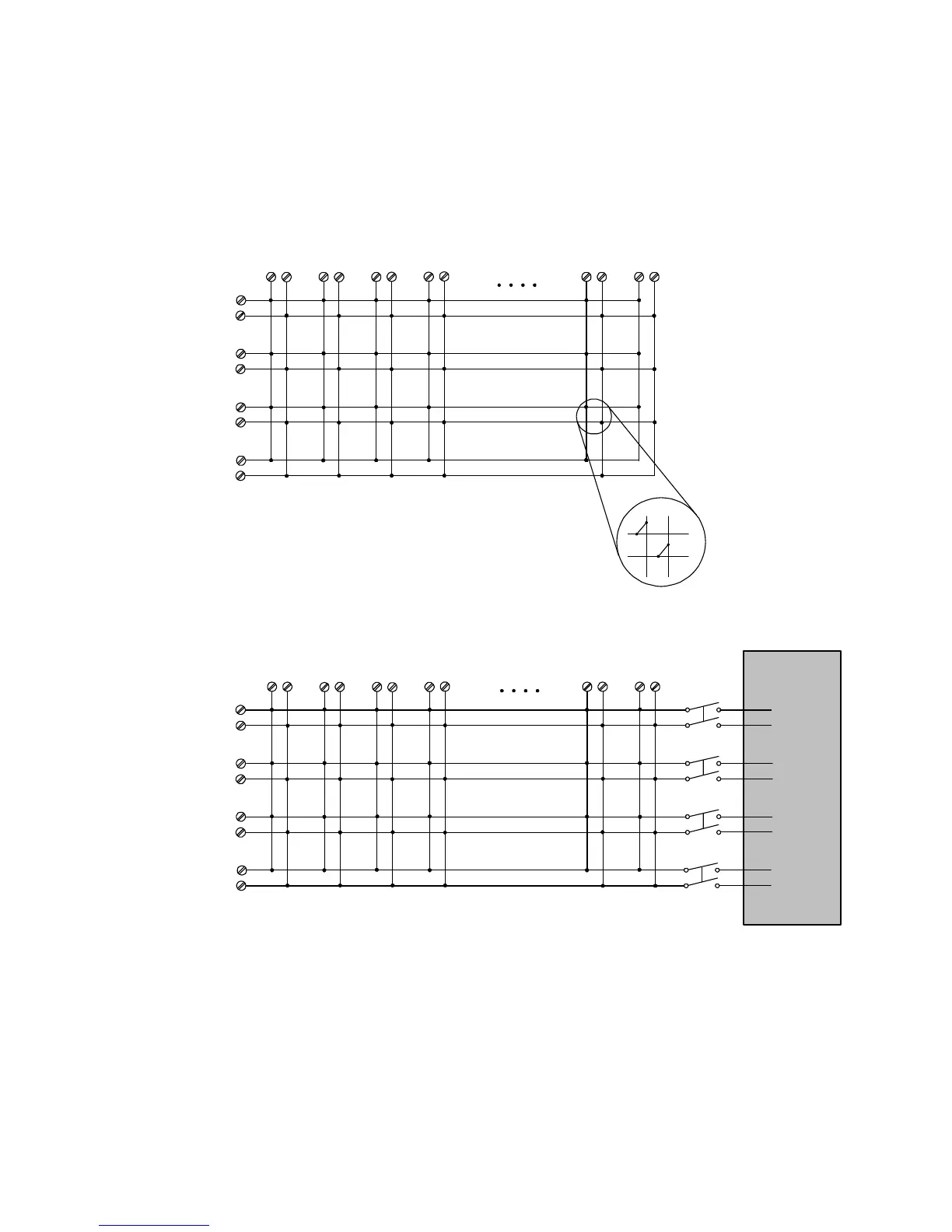

34932A Simplified Schematic
ABus1
DMM
(MEAS)
ABus2
DMM
(SENS)
ABus3
ABus4
922
923
924
921
HLHLHLHL HLHL
L
L
L
L
H
H
H
H
H
H
H
L
L
L
L
HHHH HHLLLLLL
L
L
L
L
H
H
H
Col 1 Col 2 Col 3 Col 4 Col 15 Col 16
Col 1 Col 2 Col 3 Col 4 Col 15 Col 16
Row 1
Row 2
Row 3
Row 4
Row 5
Row 6
Row 7
Row 8
Matrix 1
Matrix 2
Analog Buses
H
H
L
L
NOTE: Matrix 1 and Matrix 2 are
electrically separate from one another.
NOTE: Three-digit channel numbers are
derived from the intersection of the rows and
columns, columns having two digits. The
intersection shown here represents Channel
315 (Row 3, Column 15).
NOTE:
Matrix Relays: Armature latching
Analog Bus Relays: Armature non-latching
