Mounting the Remote Modules

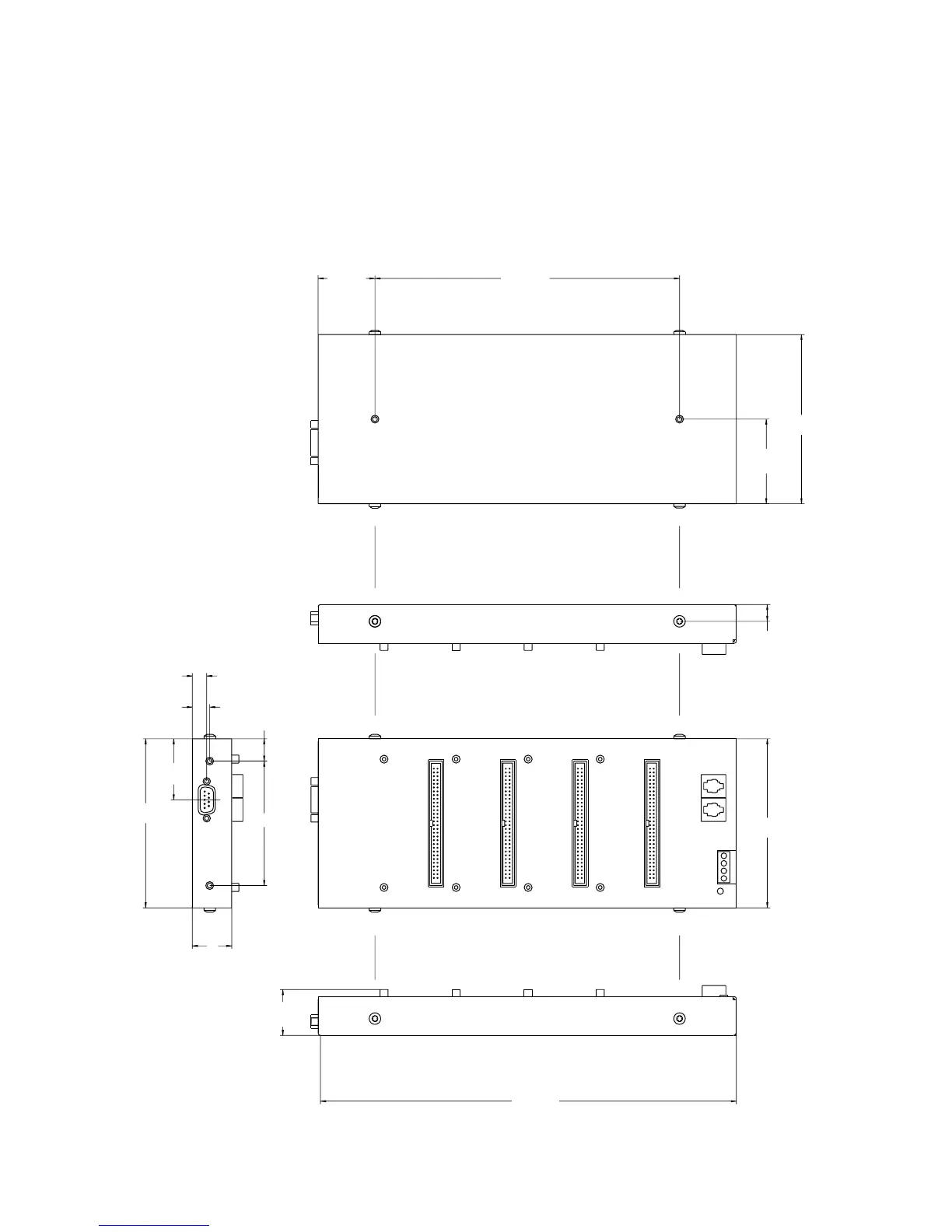

The figure below shows the dimensions of the remote module and the
locations of usable mounting holes.
205.5438.35
114.1
57.05
11.34
114.1
280.64
30.96
26.6
84
15.05
11.73
9.73
41.74
114.1
All Mounting Holes are
Metric M4X0.7 Threads
