182 34980A User’s Guide
5 Matrix Switch Modules

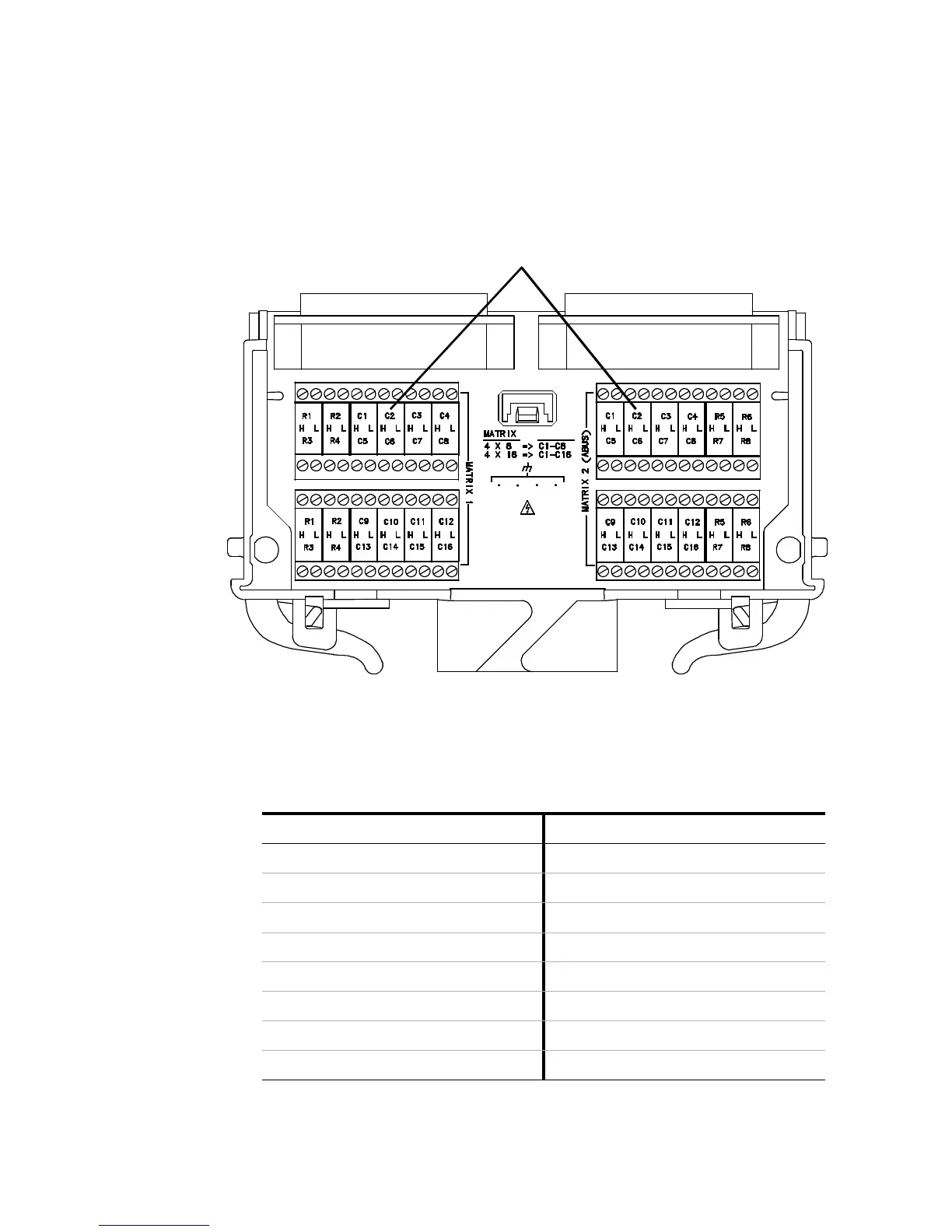

When using the 34933T terminal block for 2- wire mode, access is
provided to the bypass columns through the columns labeled C9 through
C16. Follow this wiring convention shown in the table below for both
matrices.
Although columns are numbered the
same on Matrix 1 and Matrix 2, they are
electrically separate from one another
(e.g., Col C2).
COLUMN
Terminal marked... Connects to... Terminal marked... Connects to...
C9H C1Hbypass C13H C5H bypass
C9L C1L bypass C13L C5L bypass
C10H C2H bypass C14H C6H bypass
C10L C2L bypass C14L C6L bypass
C11H C3H bypass C15H C7H bypass
C11L C3L bypass C15L CC7L bypass
C12H C4H bypass C16H C8H bypass
C12L C4L bypass C16L C8L bypass
