Agilent Technologies 34980A

Microwave Switch/Attenuator Driver 8
34980A User’s Guide 235

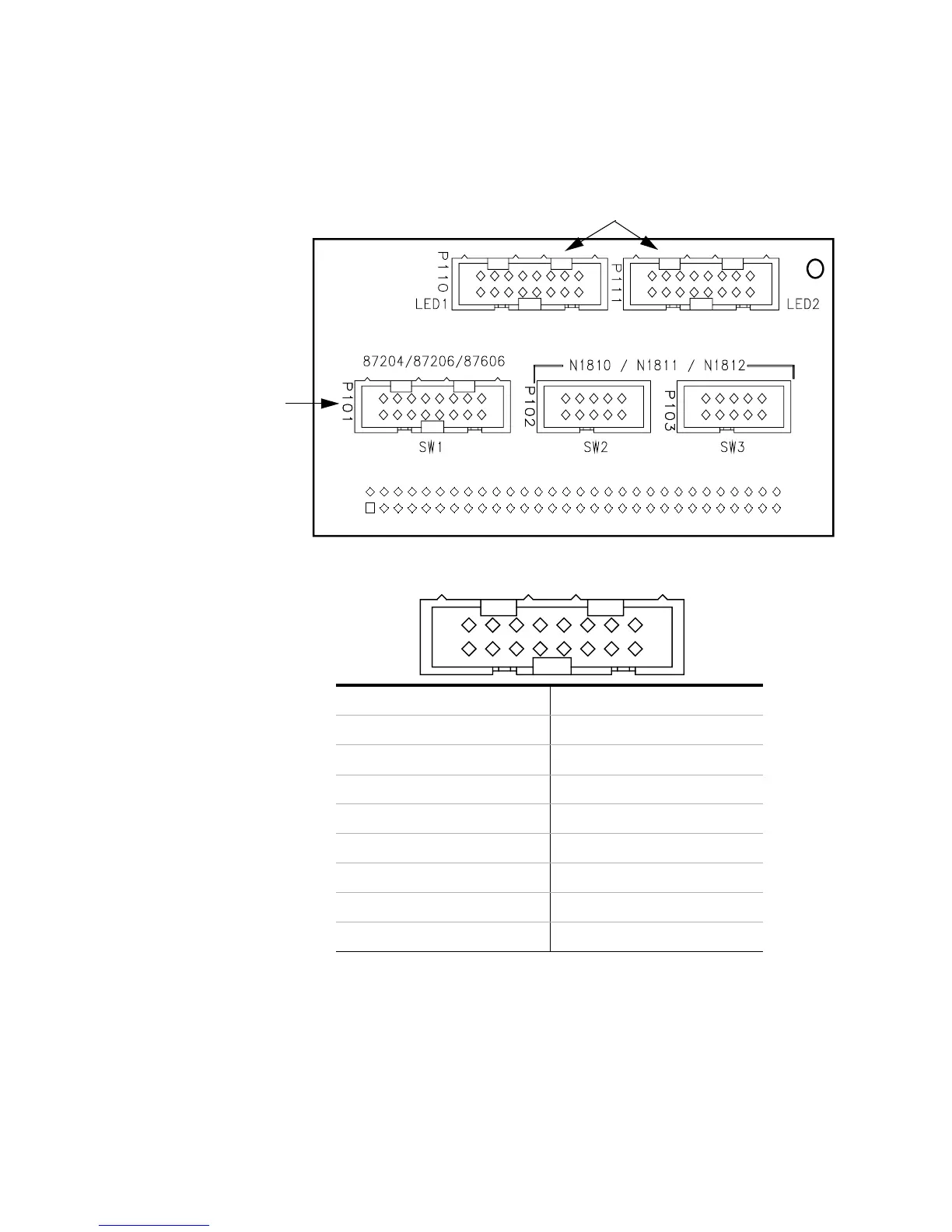

Y1152A Connections
Y1152A Switch connector SW1 (87204/06)
LED Connectors
Switch
Connectors
Pin Use Pin Use
1+VR 2N.C.
3Close 1 4Open 1
5Close 2 6Open 2
7Close 3 8Open 3
9Close 4 10Open 4
11 Close 5 12 Open 5
13 Close 6 14 Open 6
15 GND 16 N.C.
2
115
16
