Agilent Technologies 34980A User Manual

Microwave Switch/Attenuator Driver 8
34980A User’s Guide 243

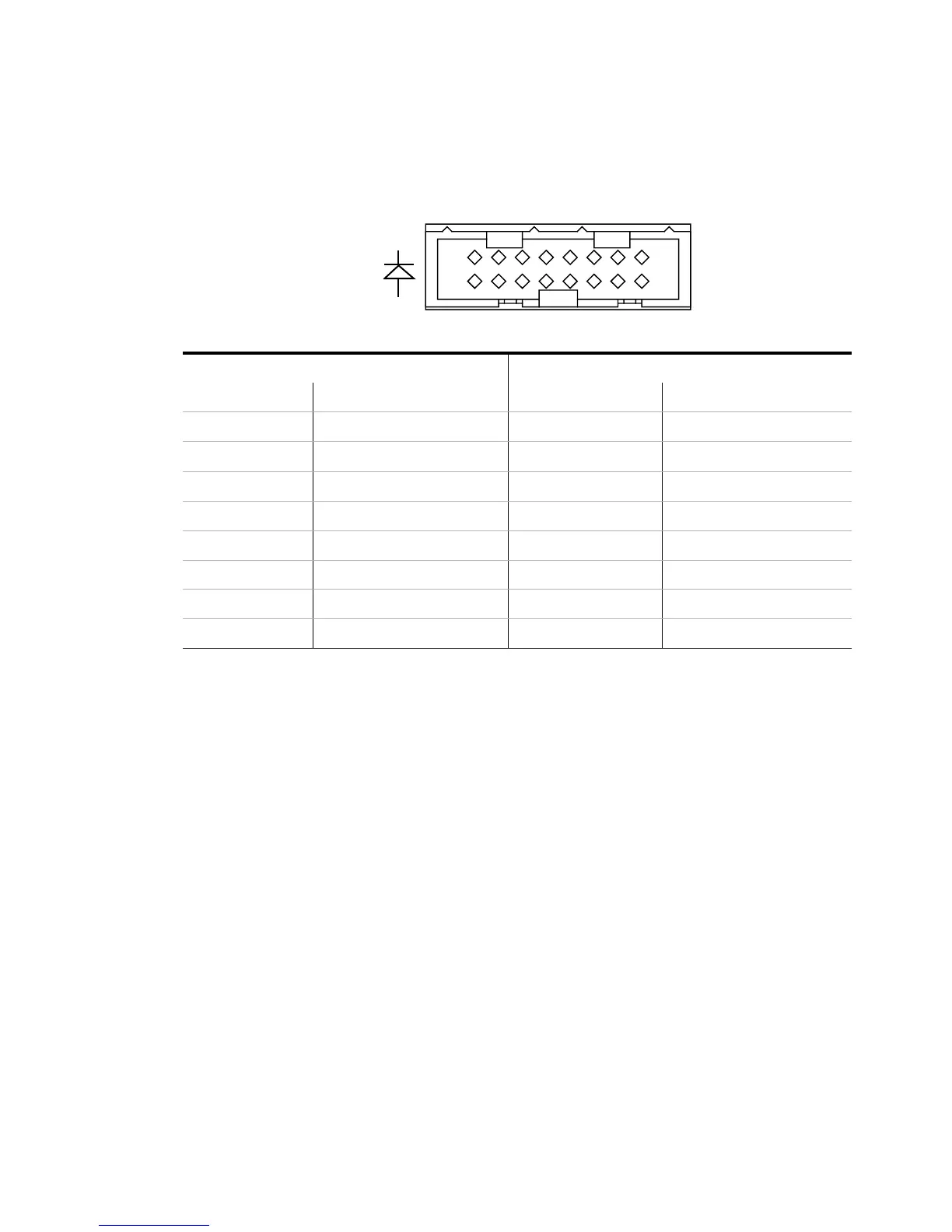

Y1153A LED Connectors LED1 and LED2
2
115
16
LED1 Connector LED2 Connector
Pin Use Pin Use Pin Use Pin Use
1 +VI 2 P101 Atten 1 1 +VI 2 P102 Atten 1
3 +VI 4 P101 Thru Line 1 3 +VI 4 P102 Thru Line 1
5 +VI 6 P101 Atten 2 5 +VI 6 P102 Atten 2
7 +VI 8 P101 Thru Line 2 7 +VI 8 P102 Thru Line 2
9 +VI 10 P101 Atten 3 9 +VI 10 P102 Atten 3
11 +VI 12 P101 Thru Line 3 11 +VI 12 P102 Thru Line 3
13 +VI 14 P101 Atten 4 13 +VI 14 P102 Atten 4
15 +VI 16 P101 Thru Line 4 15 +VI 16 P102 Thru Line 4
