4 Operating in EI Mode

To Set the JetClean Parameters for the Clean Only Mode

5977C GC/MSD Operating Manual 103

To Set the JetClean Parameters for the Clean

Only Mode

Procedure:

1 In Instrument Control view, click the MS Parameters icon.

2 In the Single Quadrupole MS Method Editor, select the JetClean tab. (See

Figure 33.)

3 From the Operation dropdown menu, select Clean Only.

4 Enter the parameters supplied by your method developer.

5 Save the method.

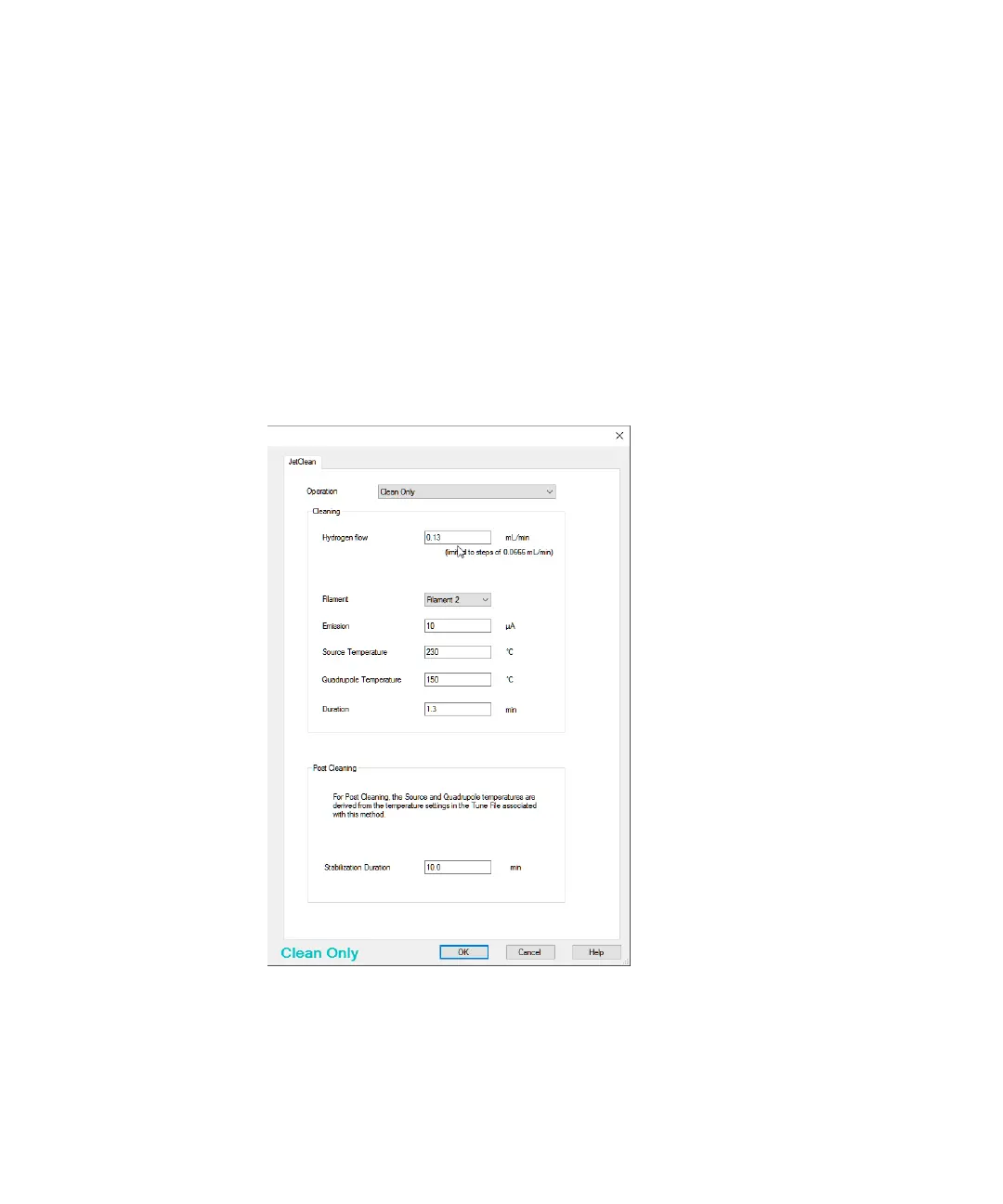

Figure 33 JetClean set to Clean Only mode
