4 Operating in EI Mode

eModule Mini Display Readout

5977C GC/MSD Operating Manual 83

eModule Mini Display Readout

The eModule mini display, accessible when the analyzer door cover is open,

allows the operator to view the LAN configuration of the instrument including its

IP address, subnet mask, default gateway, and MAC address. This LAN

configuration can be changed using the GC control panel or the web user

interface (WUI) from a web browser.

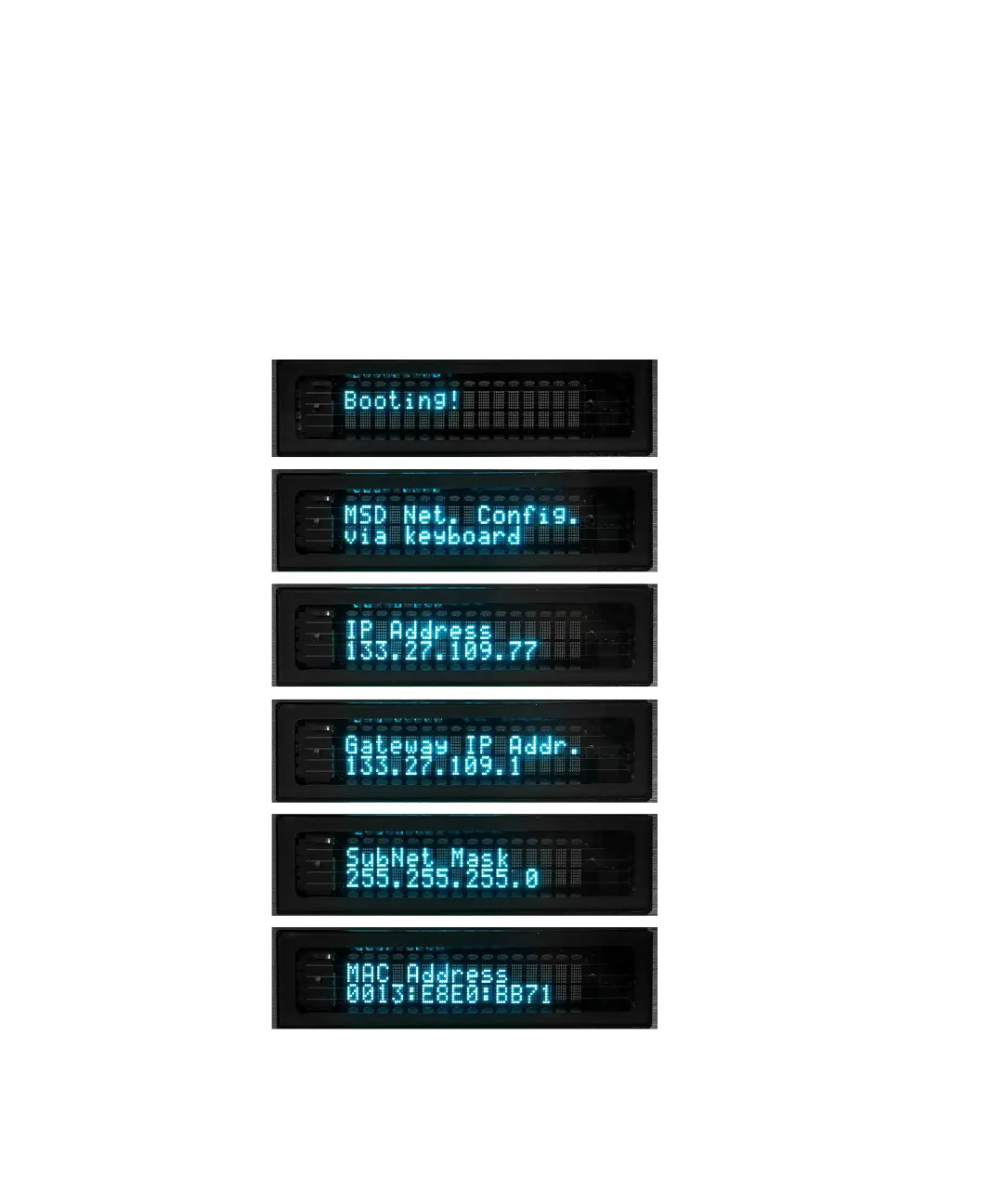

Figure 22. eModule mini display
