6 General Maintenance

To Connect/Disconnect Wiring to the EI HES

5977C GC/MSD Operating Manual 153

To Connect/Disconnect Wiring to the EI HES

Materials needed

• Gloves, clean, lint-free

• Large (8650-0030)

• Small (8650-0029)

• Pliers, long-nose (8710-1094)

• Tweezers (8710-2460)

Procedure

1 Use tweezers or needle nose pliers to connect/disconnect the ceramic board

wire leads (red, white, black, and gray) at the source connectors. (See

Figure 47.)



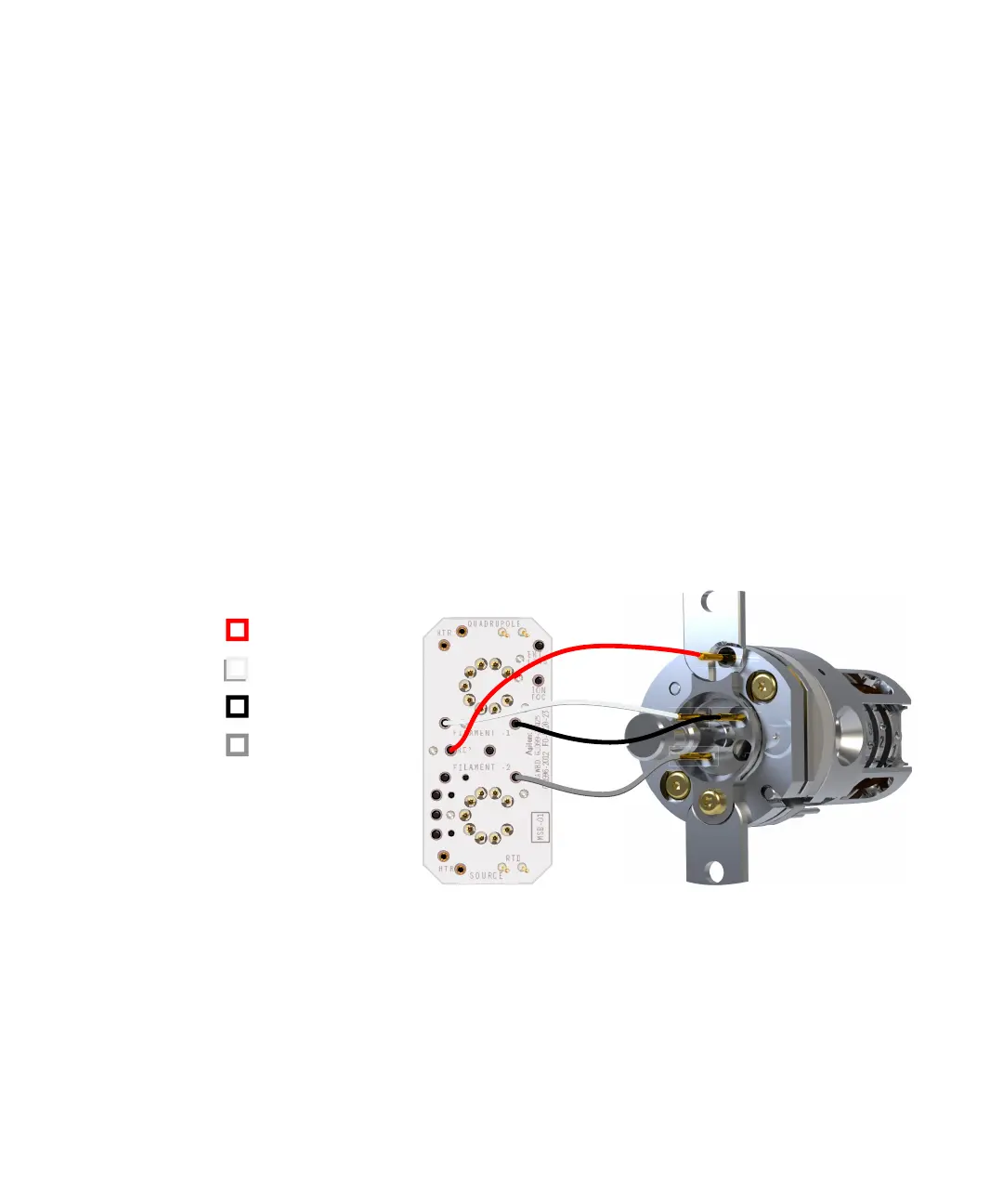

Figure 47 Wiring to be connected/disconnected during source installation or removal

Repeller

Filament common

Filament 1

Filament 2

Ceramic source board
