4 Operating in EI Mode

To Set Monitors for MSD Temperature and Vacuum Status

5977C GC/MSD Operating Manual 91

To Set Monitors for MSD Temperature and

Vacuum Status

A monitor displays the current value of a single instrument parameter. They can

be added to the standard instrument control window. Monitors can be set to

change color if the actual parameter varies beyond a user-determined limit from

its setpoint.

Procedure

1 In Instrument Control view, select Edit Monitors from the Instrument menu to

display the Select Monitors dialog. (See Figure 25.)

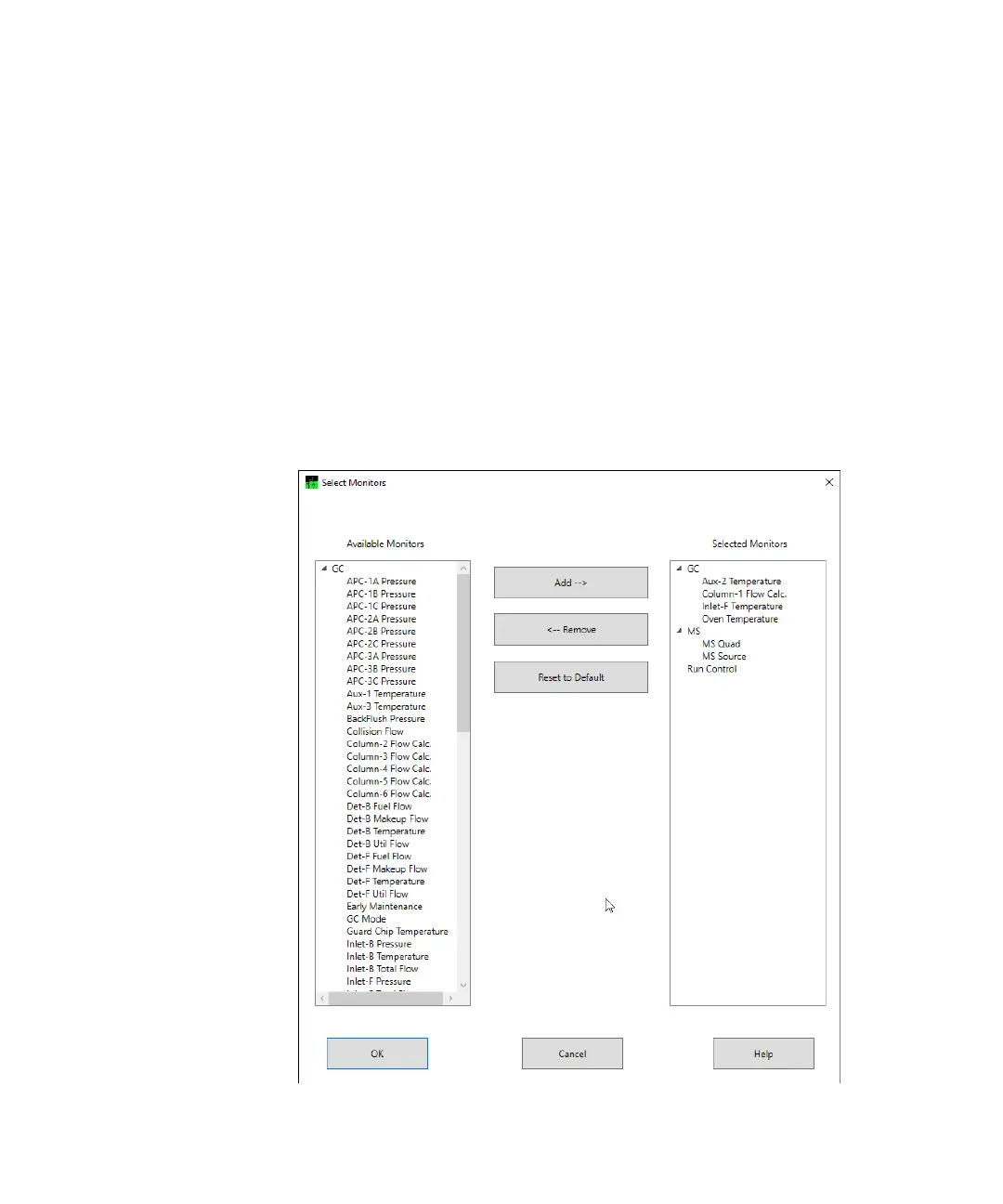

Figure 25 Select monitors dialog
