Agilent Technologies 5977C Series

To Next Page

To Previous Page

6 General Maintenance

To Clean the EI Hydronert Source

186 5977C GC/MSD Operating Manual

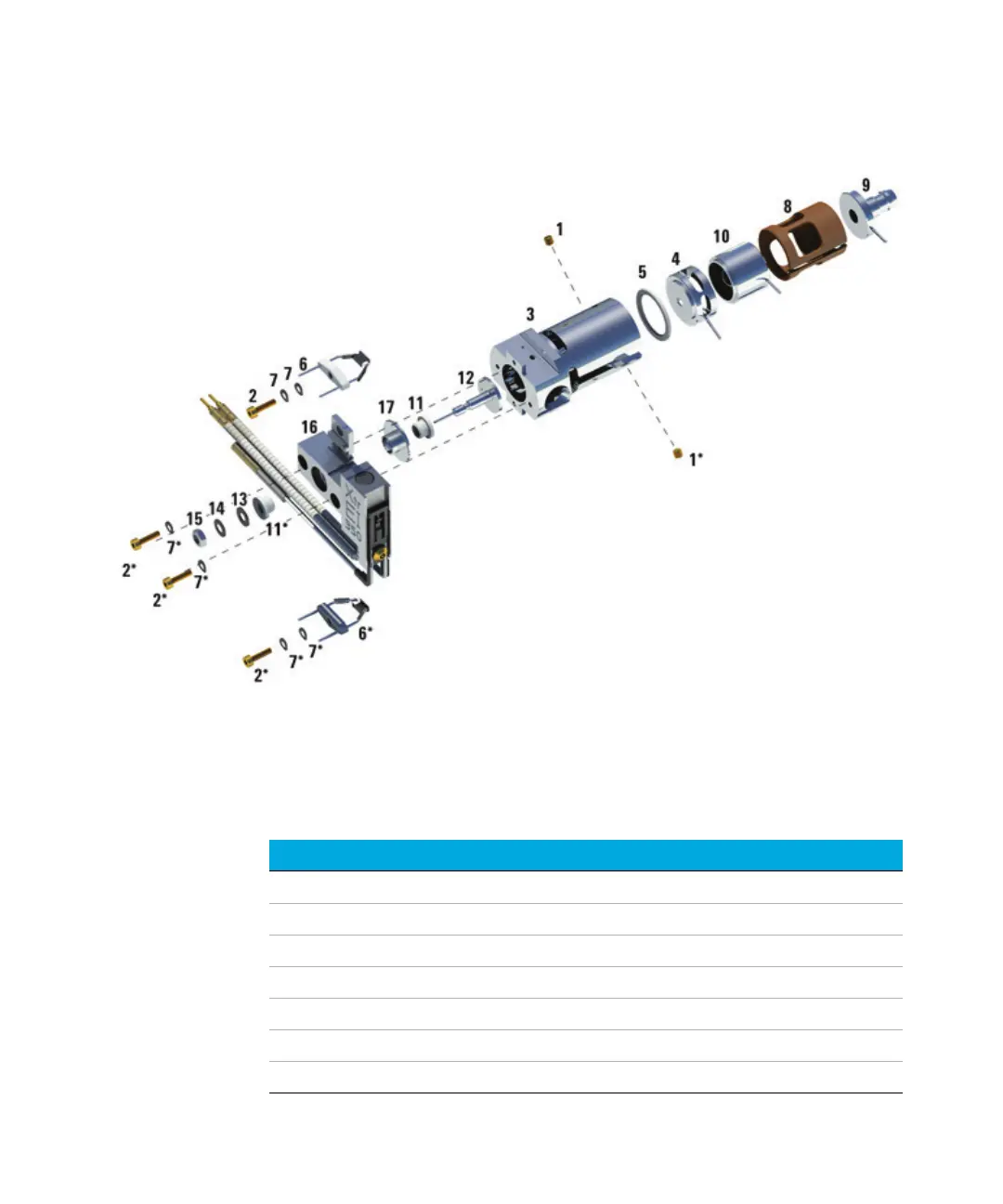

Figure 60. Cleaning the EI Hydronert source

Table 22 Parts list for EI Hydronert source (Figure 58)

Item Description Part number

1 Setscrews G3870-20446

2 Screws G3870-20021

3 Source body G7078-20903

4 Extractor lens, 9 mm G7078-20909

5 Extractor lens insulator G3870-20445

6 Filaments G7005-60061

7 Spring washer 3050-1301
