Agilent 708-DS Dissolution Apparatus
Training Manual
Revision A September 2010
P/N: xx-xxxx

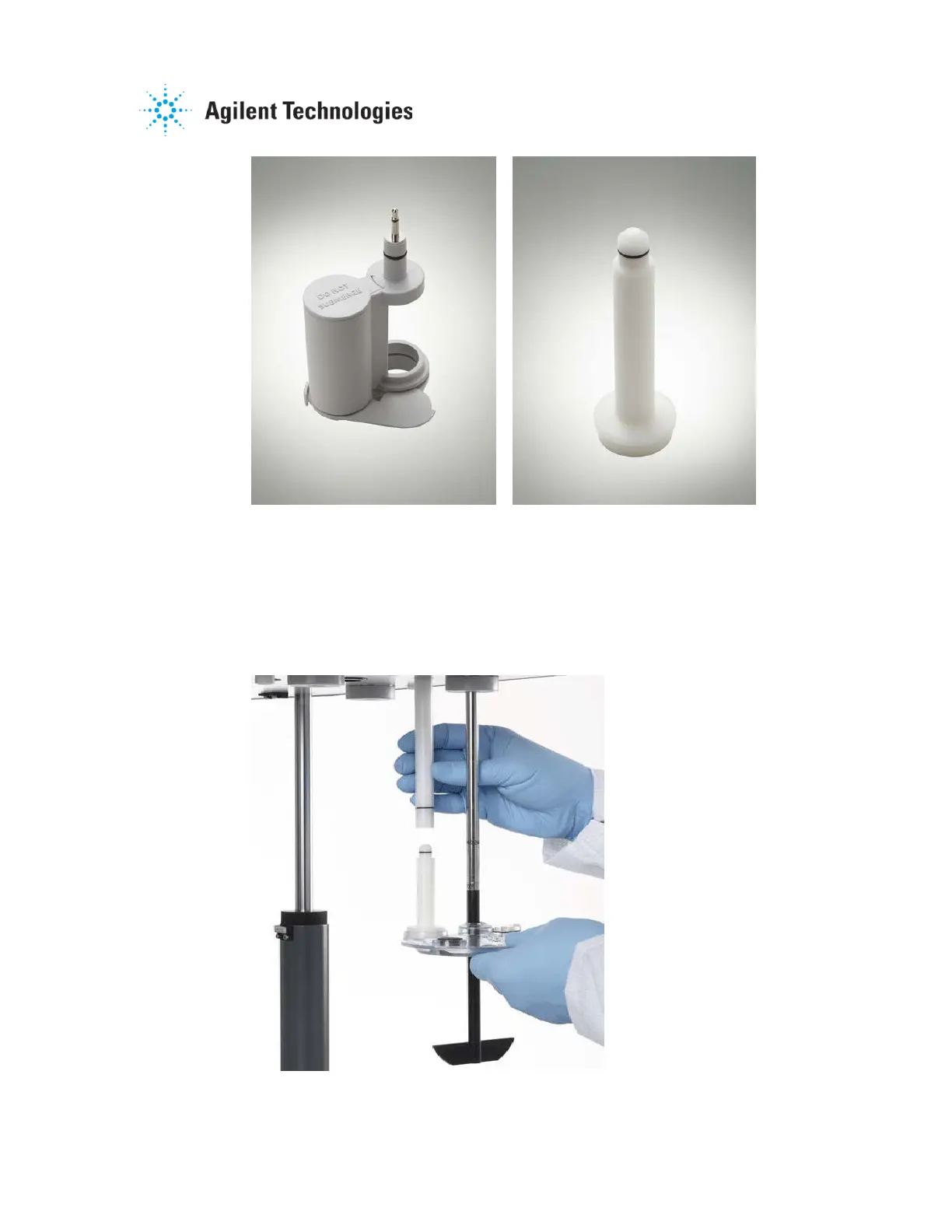

Figure 2-8. Dosage Delivery Module Figure 2-9. Cover Aligner
For all applicable positions, insert a DDM or Cover Aligner into the DDM
Alignment Shaft hanging from the underside of the drive unit.
Attach the DDM or Cover Aligner to the evaporation cover by aligning the
notch with the locking pin of the cover and pushing until fully seated.
Ensure that the sampling
port of the evaporation
cover is aligned properly
with the cannulas and
probes of the manifold, if
applicable.
For units without DDM
Alignment Shafts, insert
an Evaporation Cover
Plug into the appropriate
location of each cover.
Figure 2-10. 708-DS Accessory Installation
