Agilent 708-DS Dissolution Apparatus
Training Manual
Revision A September 2010
P/N: xx-xxxx
2.2. Firmware Setup – Instrument Settings
Once the apparatus’ accessory set up is complete, the instrument firmware is
configured to best meet the needs of the laboratory. The following sections will
proceed naturally through various screens to program specific settings and
parameters.
2.2.1. Apparatus ID Numbers, LCD Settings
From the Main screen, press Menu > Instrument. The screen shown in
Figure 2-12 is displayed:

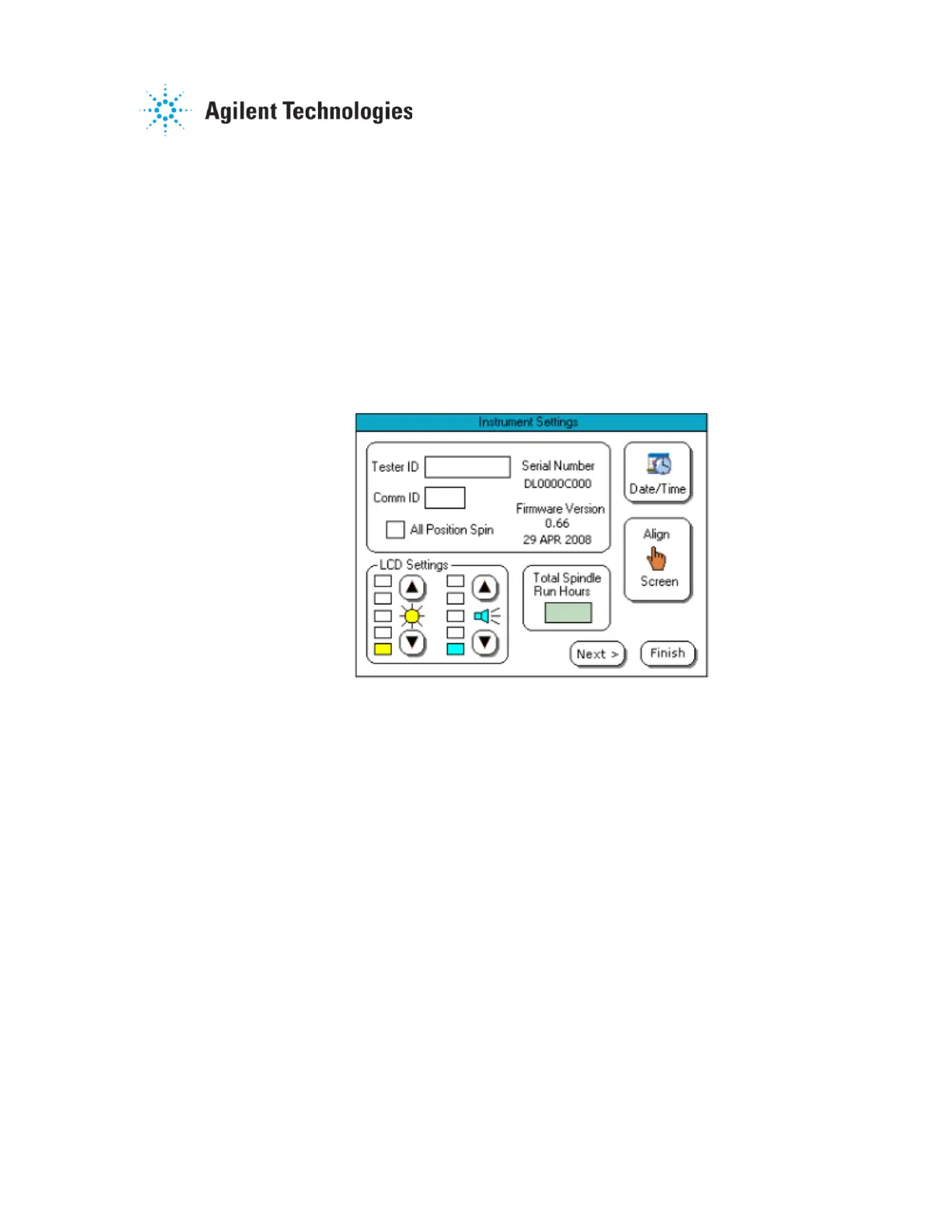

Figure 2-12. Instrument Settings Screen 1
From this screen, the following actions are performed:
Touch anywhere inside the Tester ID box to enter a unique
identification number for the 708-DS.
Touch anywhere inside the Comm ID box and enter an
appropriate communication identification number (default is 01).
Place a check in the All Position Spin box to allow for spindle
rotation with the drive unit raised (useful for RPM / wobble
verification with some measurement devices).
Adjust the LCD settings by pressing the up / down arrows to
adjust the brightness of the screen and the volume when buttons
are pressed.
