Agilent 708-DS Dissolution Apparatus
Training Manual
Revision A September 2010
P/N: xx-xxxx
← Backspace and deletes one character
/ Used as a separator in date entries
: Used as a separator in time entries
AM Designates morning when entering time in 12-hour format
PM Designates afternoon when entering time in 12-hour format
5. Option Description (Based on Configuration)
5.1. Lift Mechanism
5.1.1. Automated
The drive unit of the 708-DS dissolution apparatus configured with an
automated lift mechanism enables the user to raise and lower the drive
unit. These controls are available on the Main screen as well as the first
Diagnostics screen. The movement of the drive unit is performed by
pressing and holding the UP / DOWN arrows within the respective Drive
box. A quick double-tap of the UP arrow will lift the drive unit to its fully
raised position without having to hold the button.
5.1.2. Manual
Alternatively, the drive unit of the 708-DS dissolution apparatus may be
configured with a manual lift mechanism to raise and lower the drive unit.
The manual lift is
governed by a knob on
the right side of the
instrument.
To adjust the position of
the drive unit, loosen the
knob and raise or lower
to the desired position.
Then, tighten the knob to
secure the drive unit in
position.

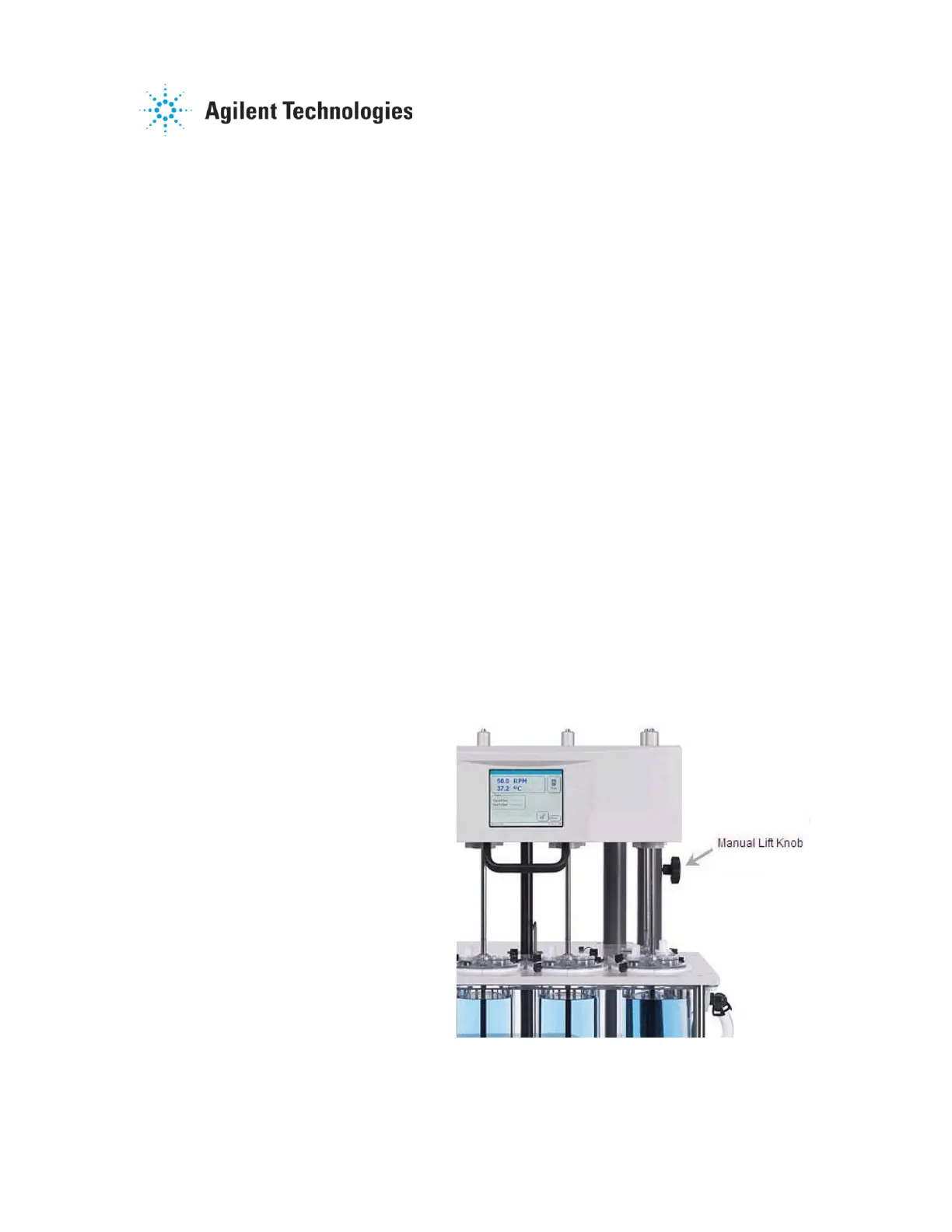

Figure 5-1. 708-DS Manual Lift Knob
