Agilent 708-DS Dissolution Apparatus
Training Manual
Revision A September 2010
P/N: xx-xxxx
- 26 -

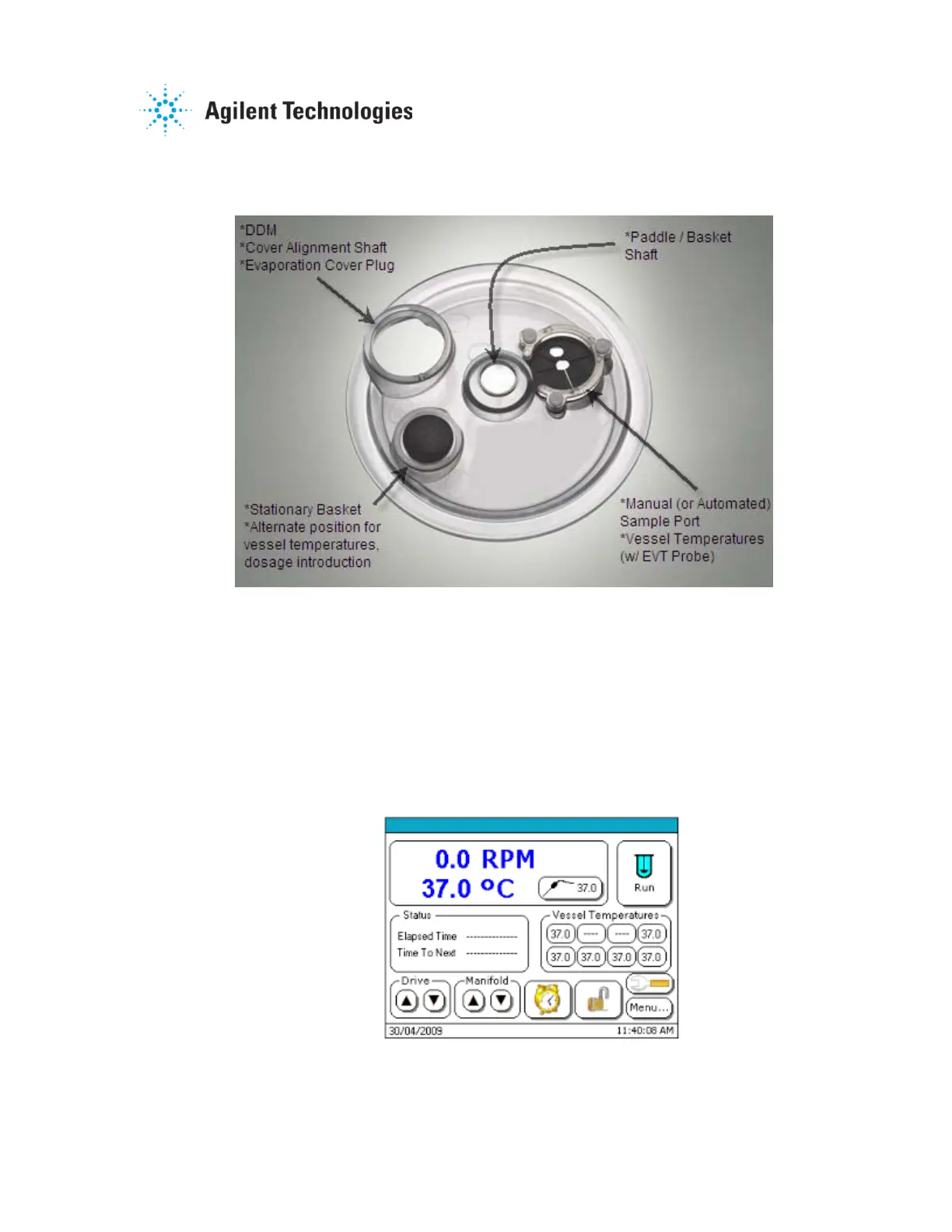

The various ports of the standard evaporation cover of the 708-DS dissolution
apparatus are described in Figure 4-3.
Figure 4-3. 708-DS Standard Evaporation Cover
4.3. LCD Display (Touch Screen)
4.3.1. Operations from Main Screen
From the Main screen, several operations are available without navigating
any further. This is done by pressing the “hotspots” and easy access
buttons on the touch screen.
Figure 4-4. Main Screen
