4-14 Option 100 Fault Location and SRL
Making SRL Measurements
How to Make and Interpret SRL Measurements

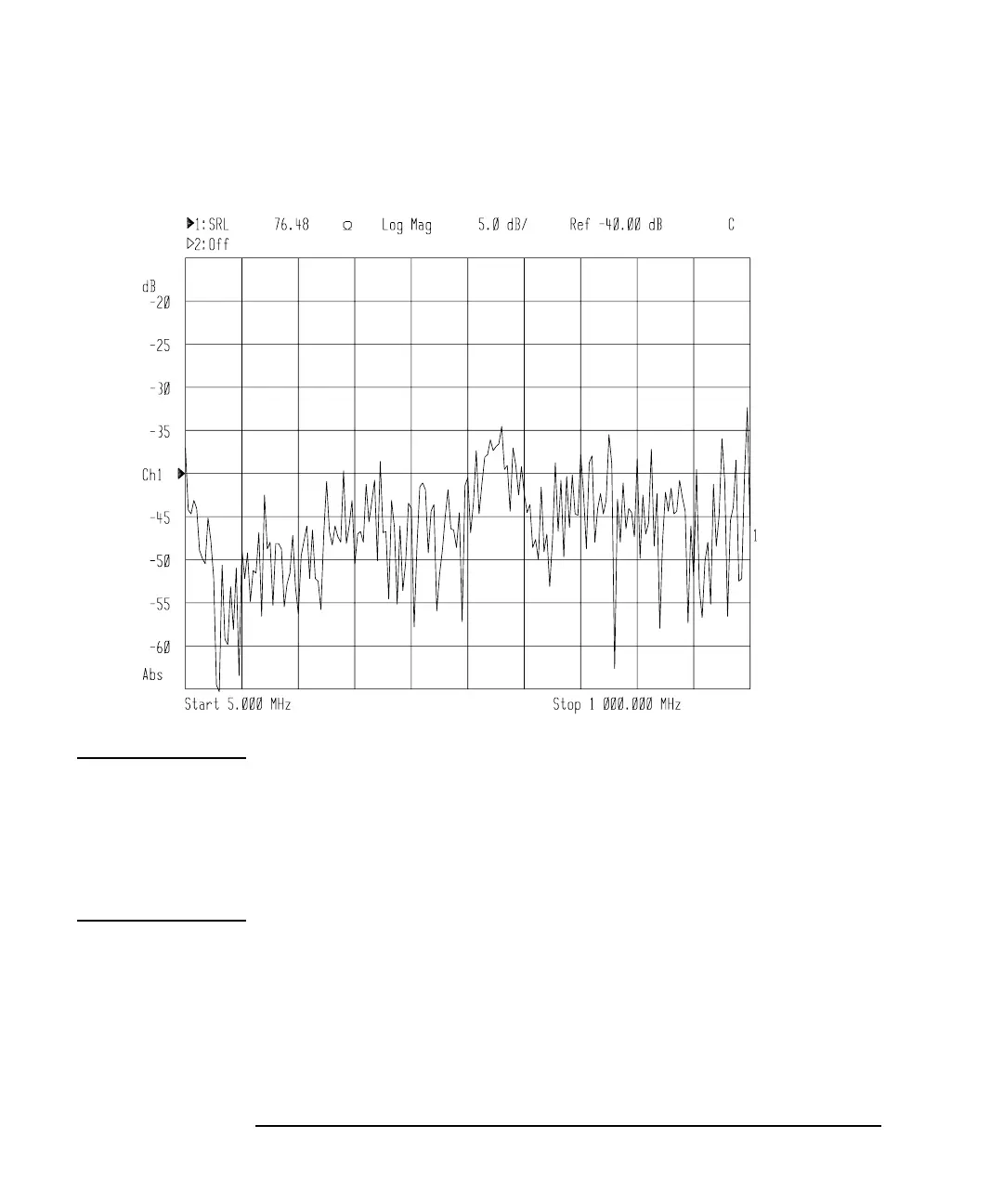

Figure 4-8 Typical SRL Measurement Response with
Good Connector Model
NOTE If you cannot obtain a low enough response by adjusting the connector
length and/or connector C values, you should perform a fault location
measurement on the connector and the cable under test. (See Chapter 3,
“Making Fault Location Measurements.”) Be sure to determine the
quality of the connector being used; some cable connectors degrade
rapidly with use. The response of a bad connector is often large enough to
swamp out the response from cable SRL.
