4-18 Option 100 Fault Location and SRL
Making SRL Measurements
How to Make and Interpret SRL Measurements

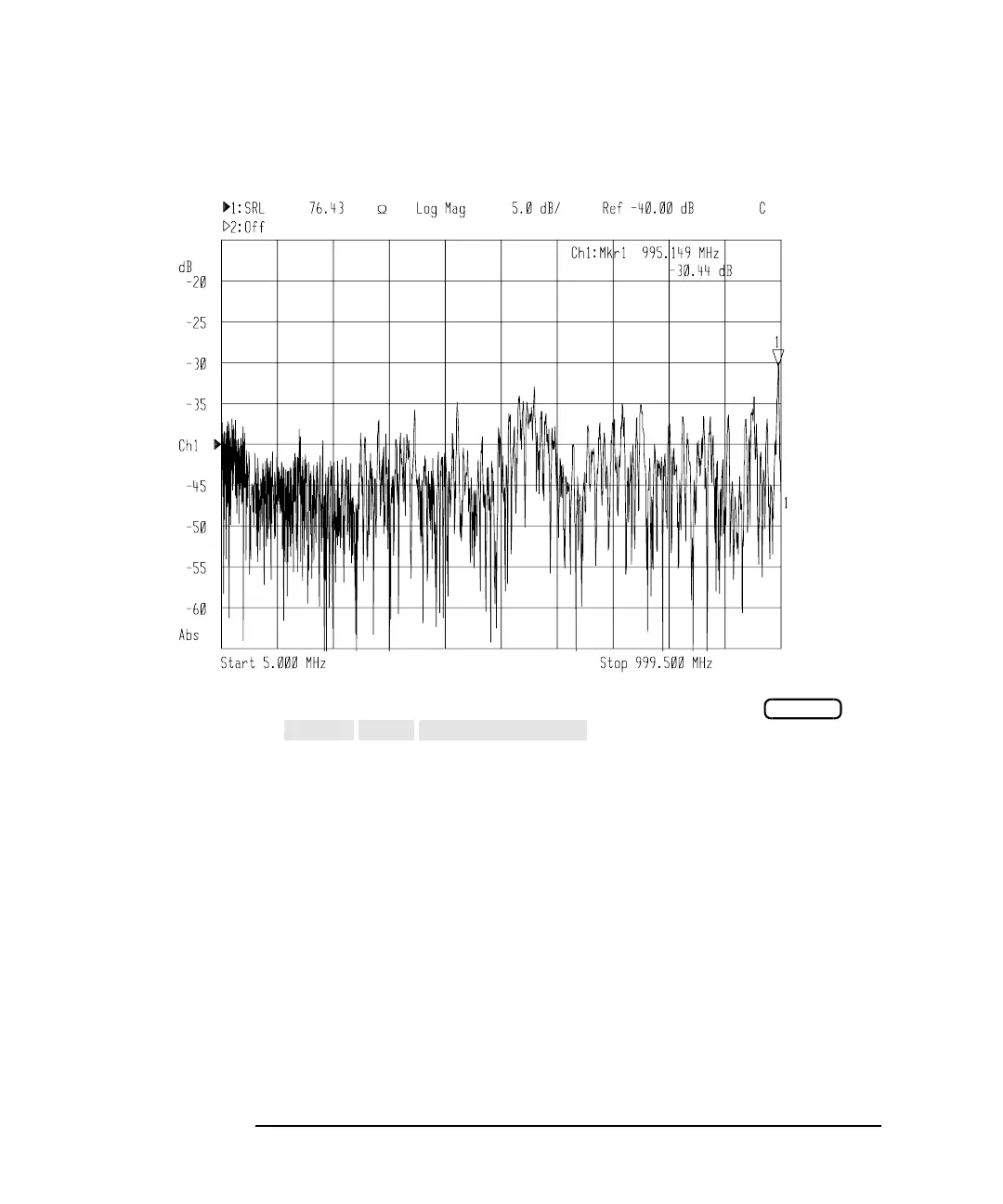

Figure 4-9 Typical SRL Cable Scan Response
10.To remeasure the cable, or to measure a new one, press
. It may be desirable to reverify
the quality of the calibration before measuring a new cable.
BEGIN
