4-30
Supplement for the User’s Guide (Firmware Version 7.68)
Adapter Removal Using ECal (ES Analyzers Only)
• Adapter A1, which mates with port 1 of the DUT, must be installed on Port 1 of the
analyzer.
• Adapter A2, which mates with port 2 of the DUT, must be installed on Port 2 of the
analyzer.
• Adapter A3 must match the connectors on the DUT. The effects of this adapter will be
completely removed with this calibration technique.
NOTE Adapters A1 and A2 become part of the test setup to allow connection to the
DUT. Adapter A3 is used during the calibration only. Its effects will be
removed.

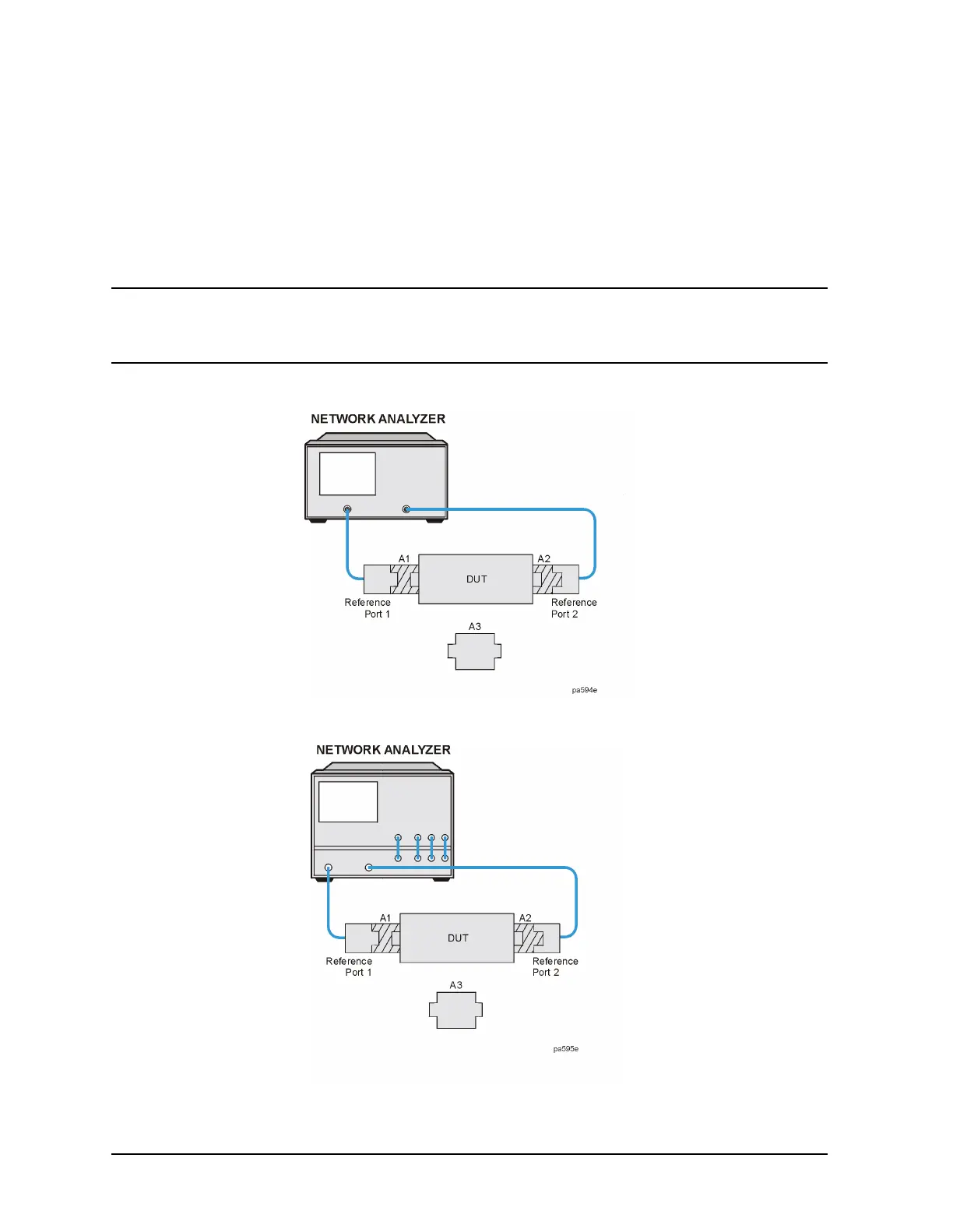

Figure 4-14 8753ET/ES Adapters Needed
Figure 4-15 8753ES Option 011 Adapters Needed
