Supplement for the User’s Guide (Firmware Version 7.68)
Enhanced Frequency Response Error Correction
6. To select the correction type, press
and select the correction type.
❏ If you want to make measurements in the forward direction, press:
or on ET models:
❏ For ES analyzers, if you want to make measurements in the reverse direction, press:
7. Connect a shielded open circuit to PORT 1 (or PORT 2 for reverse measurements).
NOTE Include any adapters that you will have in the device measurement. That is,
connect the standard to the particular connector where you will connect your
device under test.

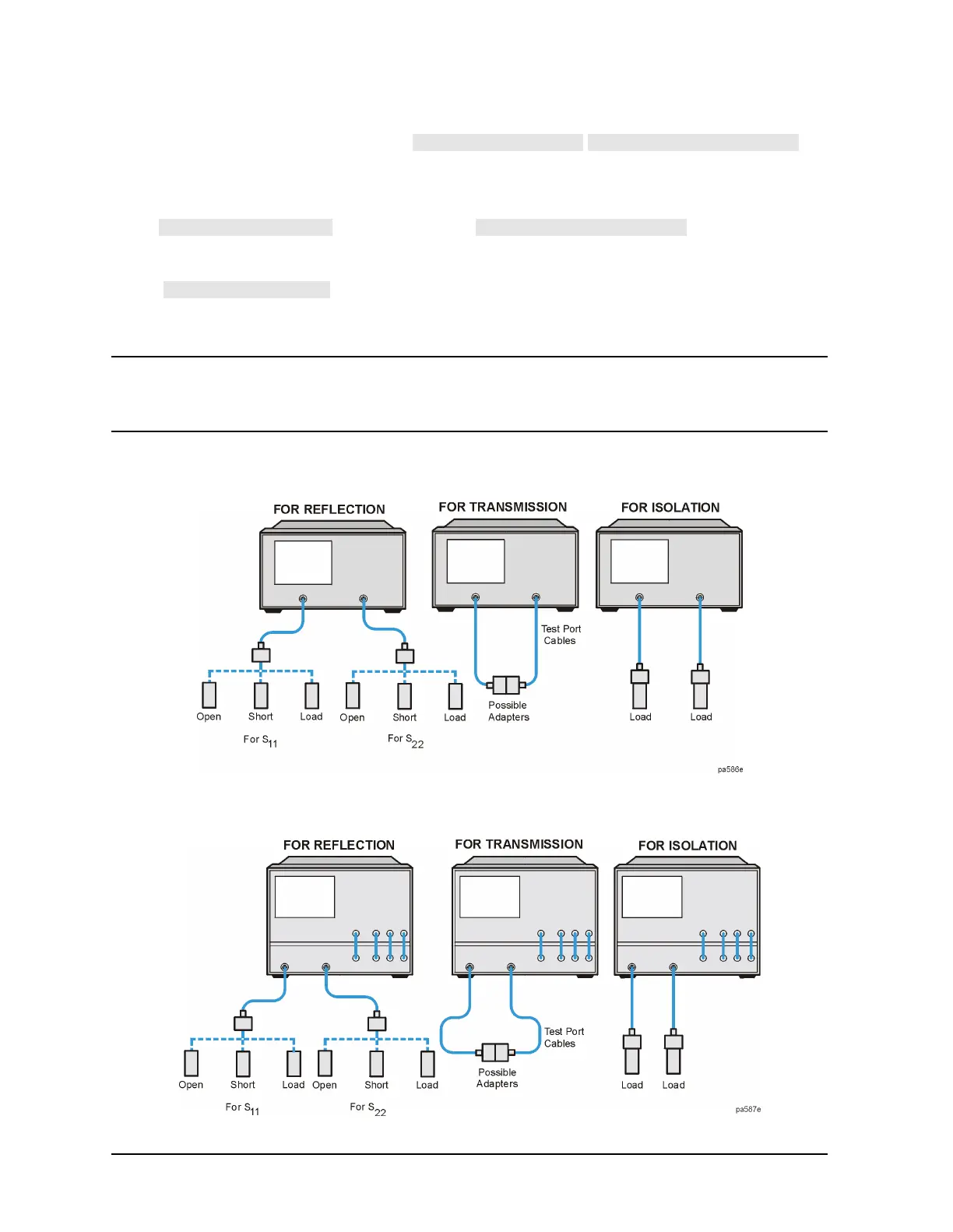

Figure 4-1 8753ET/ES Standard Connections for Enhanced Response
Calibration
Figure 4-2 8753ES Option 011 Standard Connections for Enhanced Response
Calibration
