Functions and Measurements 3
N9342C/43C/44C User’s Guide 69
4 Press [Meas] > {Symbol Rate} > [10] > {MHz} to set
the symbol rate.
5 Press {Filter Setup} > {Ref Filter} > {Nyquist} > {Return}
to set the filter type.
6 Set the attenuation state to Auto (default):
Press [Amptd] > {Attenuation Auto}
7 Press [Disp] > {Y Scale} > {Scale Coupling On} to set
the Y scale auto coupling.
8 Setting the ASK depth limit and turn on the
limit function:
Press [Limits] > {ASK Depth UP} > [71] > {%} > {ASK
Depth Low} > [70] > {%} > {Limits on}
9 Press {Disp} > {Display} > {Eye Diagram} to view the
eye diagram.

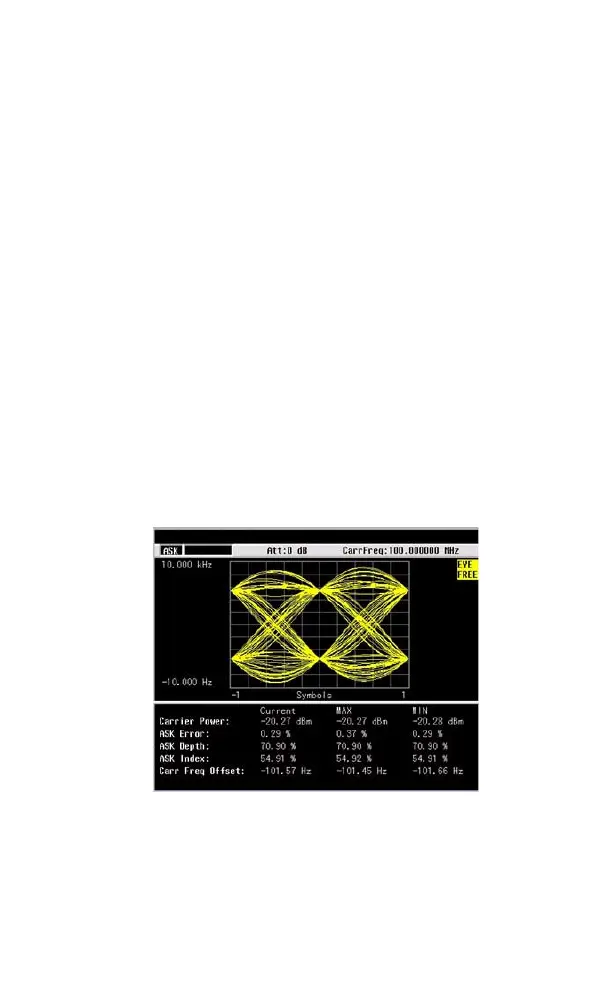

The figure below indicates the ASK eye diagram as
a measurement result.
Figure 3-27 ASK Eye Diagram
