TriScroll 600 Disassembly
Remove and Disassemble the Intake
Fitting

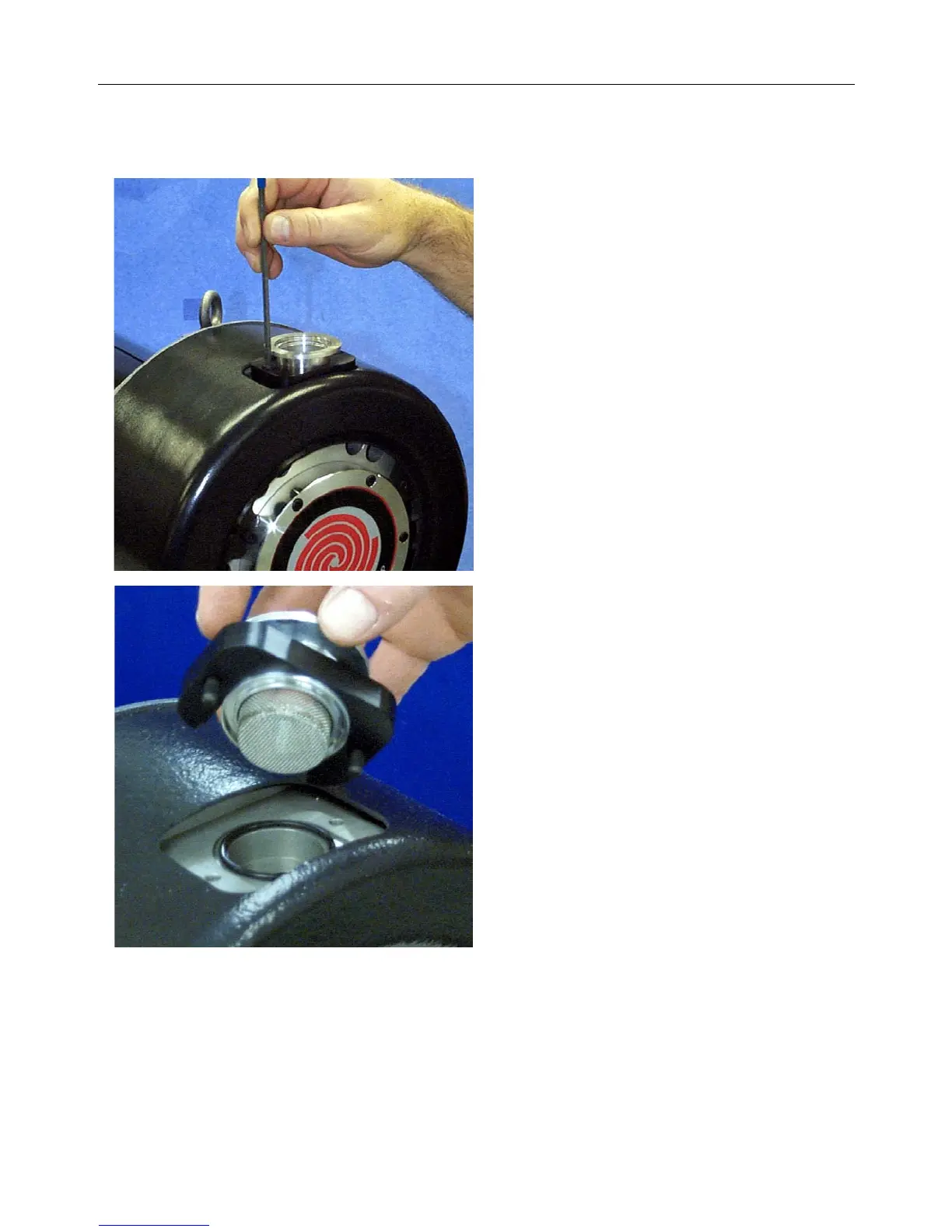

1. Remove the two M5x16 screws from the
intake assembly.
2. Remove the intake assembly from the top of
the pump.
3. Remove and discard the O-ring from the
groove on the underside of the intake fitting.
4. Remove the intake clamp from the intake
fitting.
5. Remove and discard the snap ring from the
intake fitting.
6. Remove the screen from the intake fitting.
