Insert the Seal Housing
Tools required:
❑ Allen wrench
❑ Seal installation tool
❑ Krytox GPL 224 grease
❑ Locite
®
242

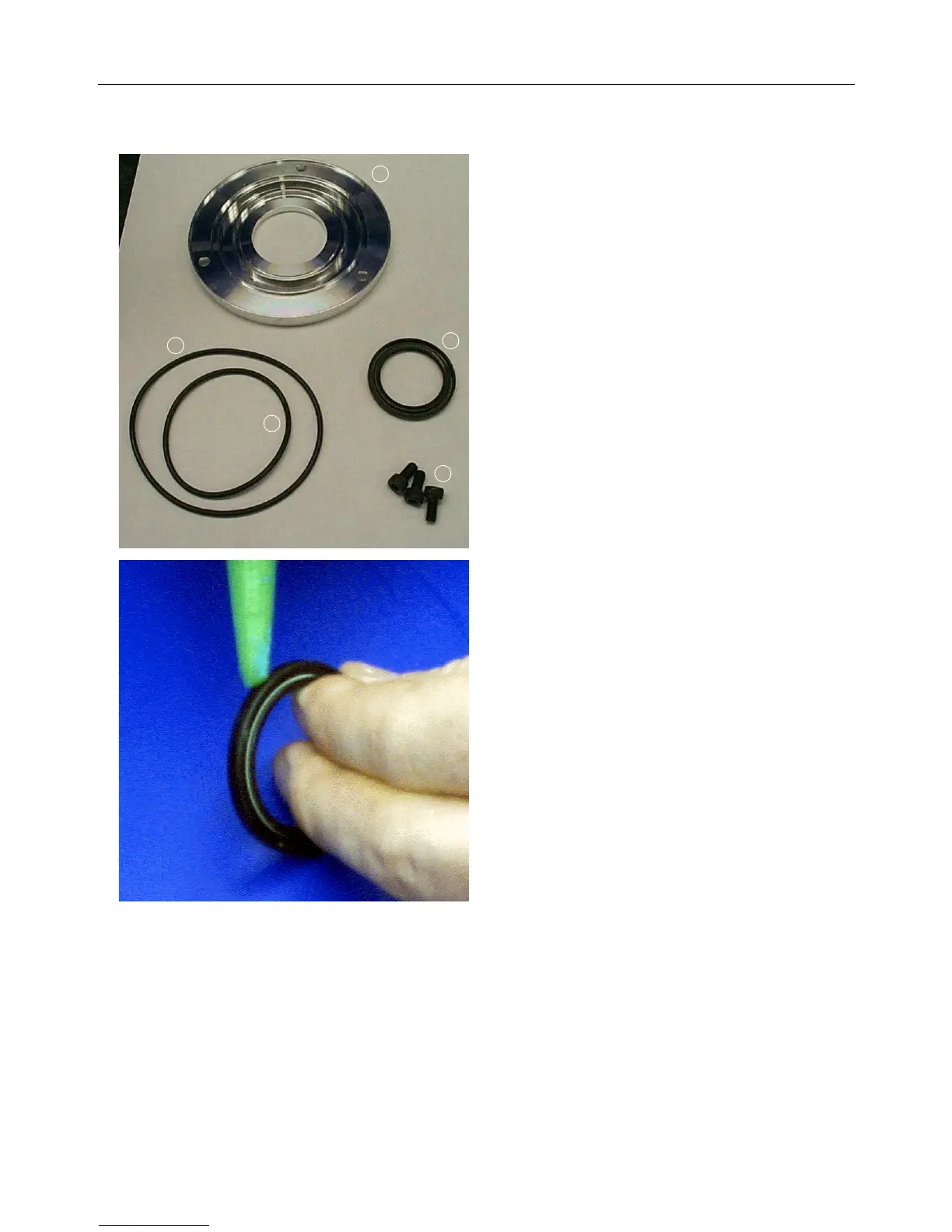

Locate the following parts shown in the photo
on the left:
➀ Seal housing
➁ Shaft seal, 32x42x4, included in
maintenance kit
➂ M5x10 screw (3)
➃ O-ring, 2-152, included in maintenance kit
➄ O-ring, 2-140, included in maintenance kit
1. Spread a thin film of Locite
®
242 onto the
outer surface of the shaft seal, (32x42x4).
Inboard Housing Assembly (continued)
4
5
3
1
2
