Agilent Technologies TriScroll 600 Series - Replace the Cowling, Cover, and Intake Fitting

83
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 7 / 1 1
Replace the Cowling, Cover,
and Intake Fitting
Tools required:
❑ Allen wrench
❑ Krytox GPL 224 grease

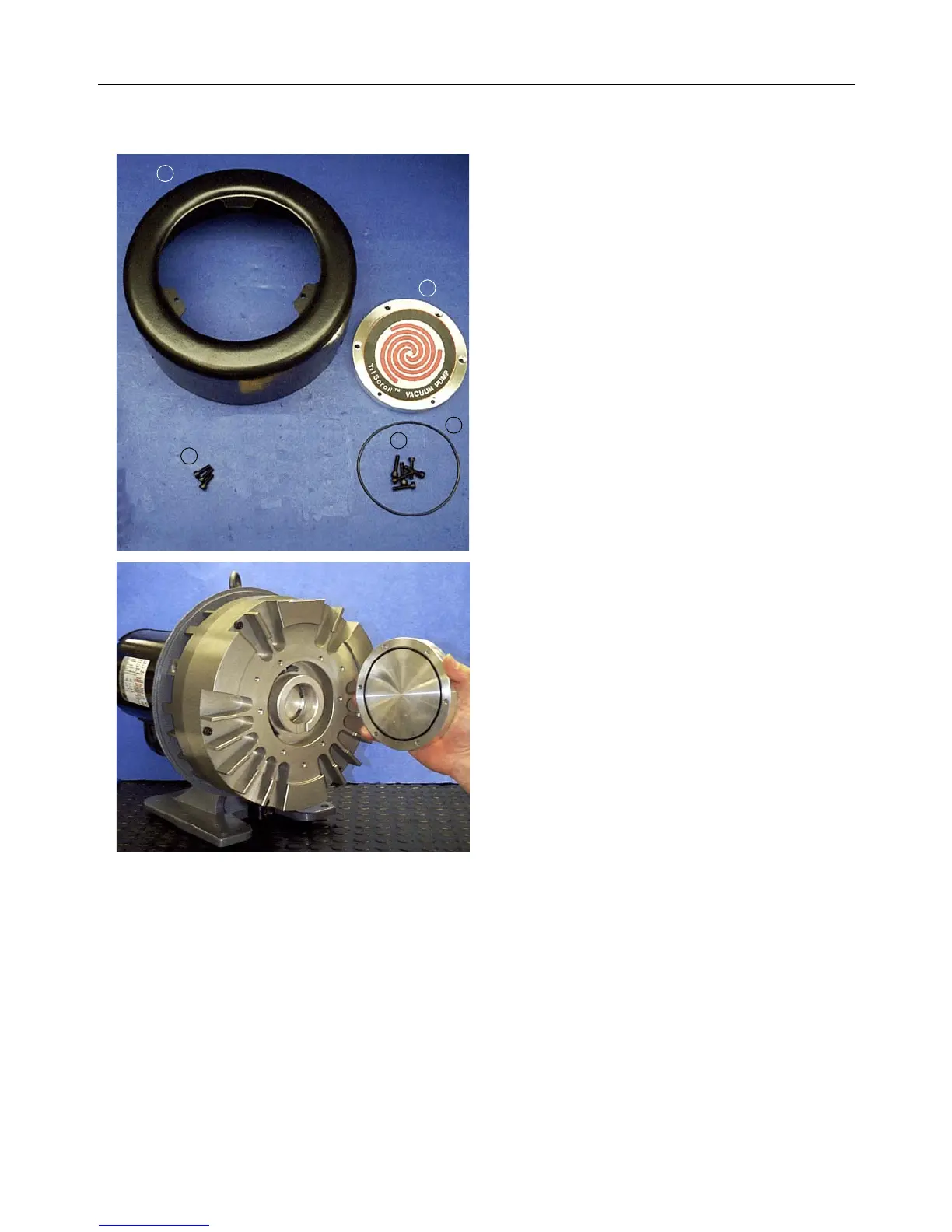

Locate the following parts:
➀ Cowling
➁ Outboard cover
➂ O-ring, 2-157, included in maintenance kit
➃ M5x22 screws (6)
➄ M5x16 screws (3)
1. Lightly grease the O-ring and insert it into
the groove on the outboard cover.
Final Assembly (continued)
1
2
3
4
5
