Insert the Crankshaft
Tools required:
❑ Cooling stand
❑ Gloves

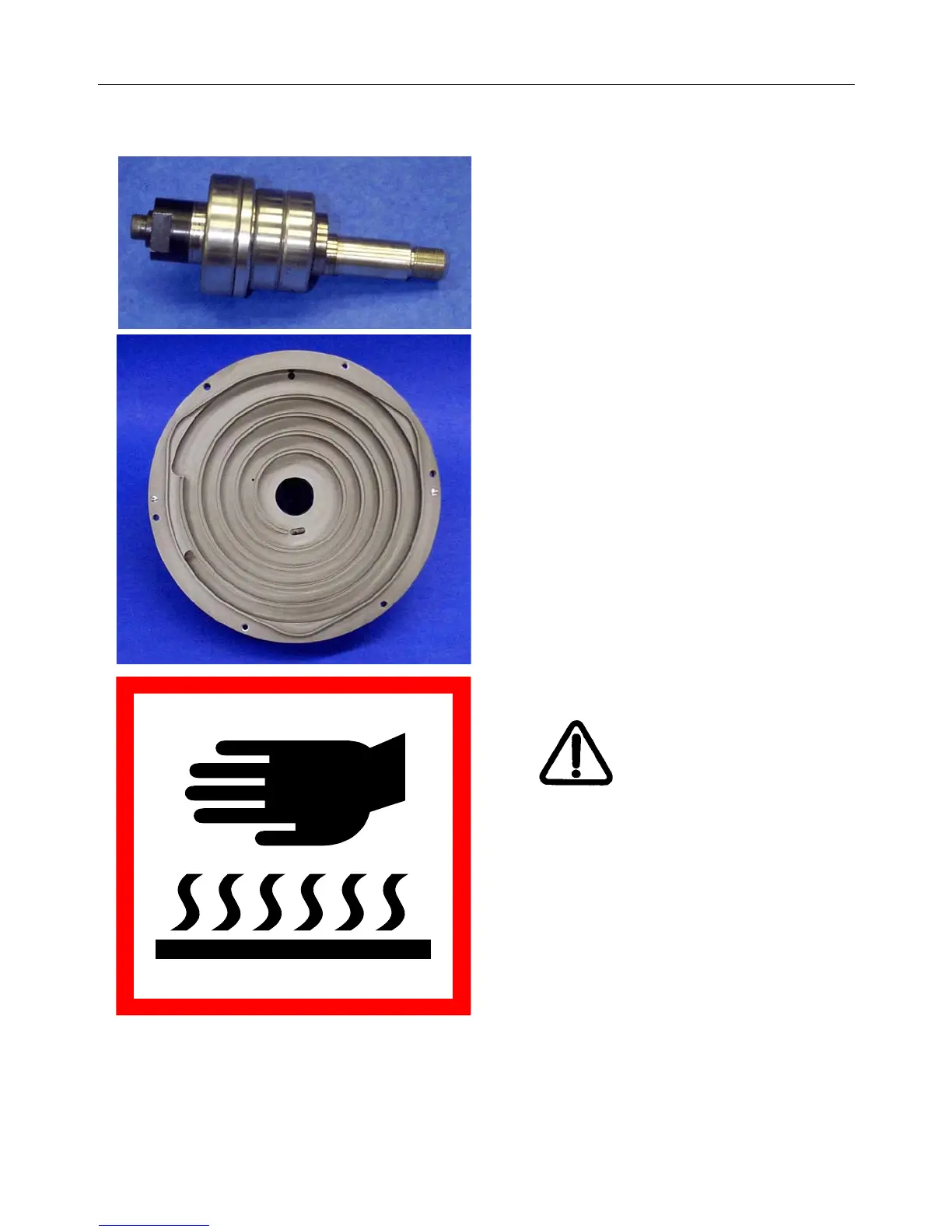

Locate the following items:
❑ Crankshaft assembly
❑ Inboard housing
1. Heat the inboard housing for a minimum of
1 hour in a 350
o
F oven.
Inboard Housing Assembly (continued)
WARNING This step requires the use
of heat resistant gloves. Do
not proceed without them!
