Agilent Technologies TriScroll 600 Series Major Maintenance Manual

42
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4
Install the Vents and Plugs
Tools required:
❑ 14 mm wrench
❑ Loctite PST 567 pipe sealant, included
in maintenance kit

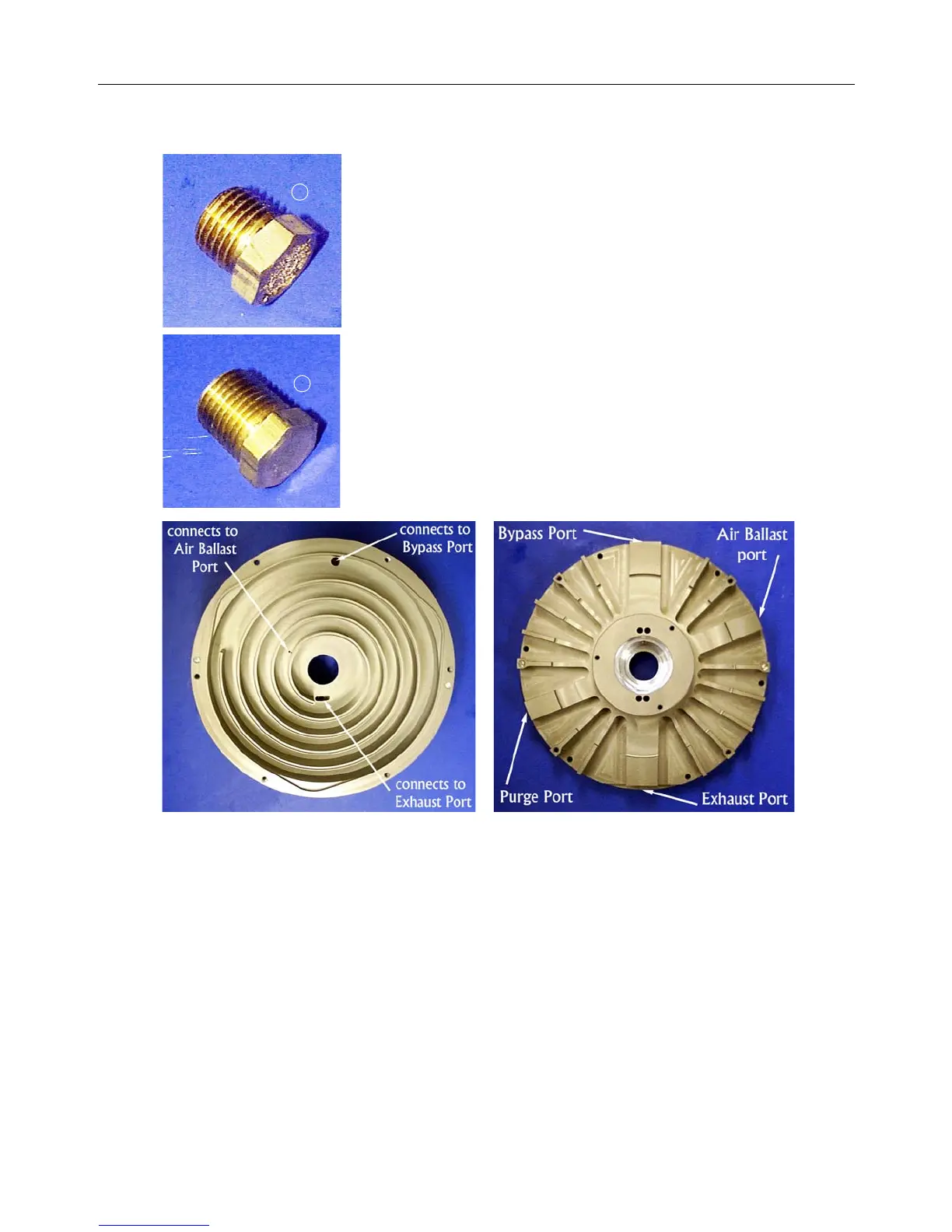

Locate the following parts:
➀ Breather Vent, PTS06001UNIV and
PTS06003UNIV, 1 required
➁ 1/4 NPT brass plug, PTS06001UNIV and
PTS06003UNIV, 1 required
PTS06101UNIV and PTS06103UNIV,
2 required
Inboard Housing Port Definition
Inboard Housing Assembly (continued)
1
2
