Agilent Technologies TriScroll 600 Series Major Maintenance Manual

61
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4
Install the Needle Bearings
Tools required:
❑ Right angled snap ring pliers
❑ Krytox GPL 224 grease

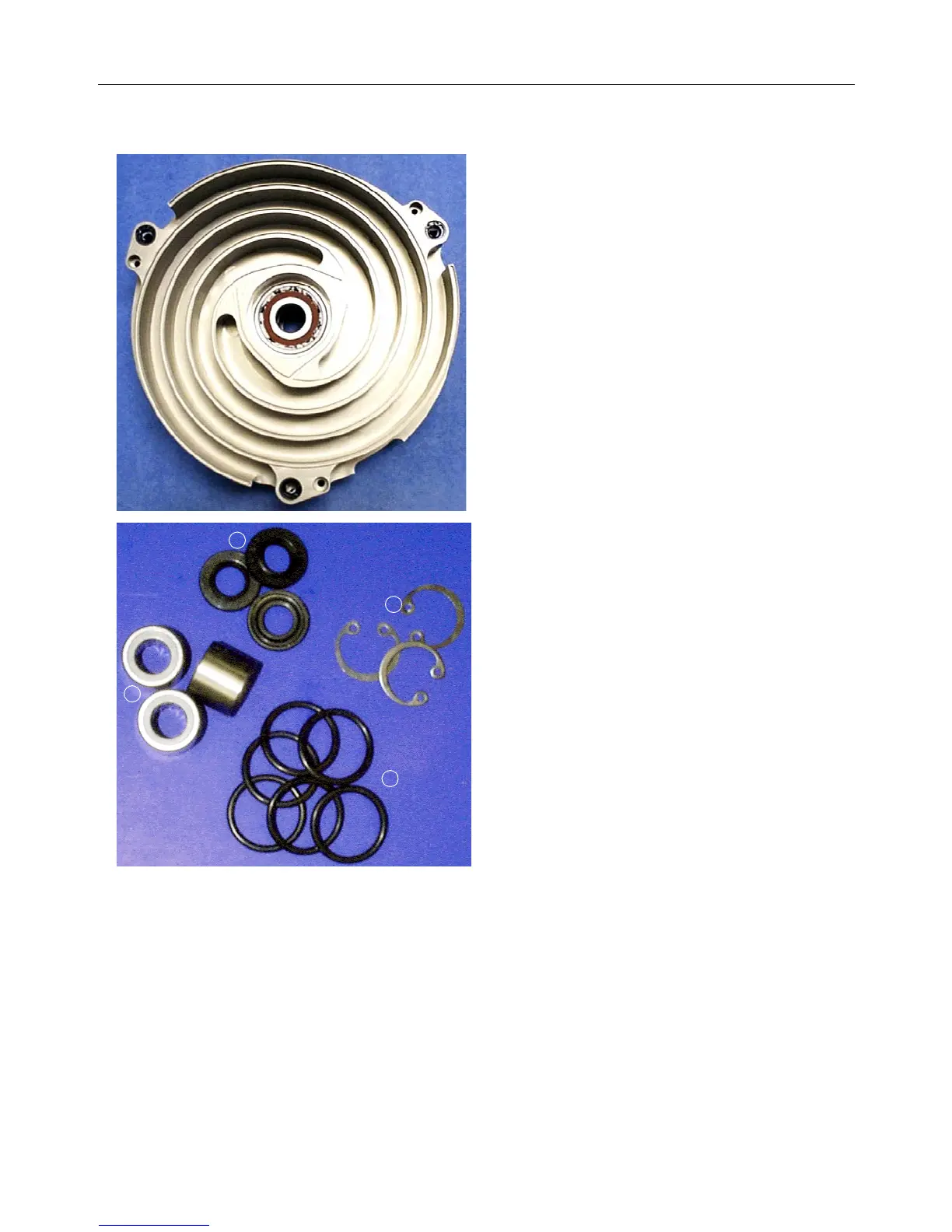

Locate the following part shown in the photo on
the left:
Orbiting plate
Locate the following parts shown in the photo
on the left:
➀ Snap rings (3)
➁ O-rings, 2-016 (6), included in maintenance
kit
➂ Needle bearing (3), included in
maintenance kit
➃ Shaft seals, 8x15x3 (3), included in
maintenance kit
Orbiting Plate Assembly (continued)
1
2
3
4
