TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4
1. Lightly grease the O-rings, then insert them
into the two grooves in each of three sync
crank bearing bores in the orbiting plate.

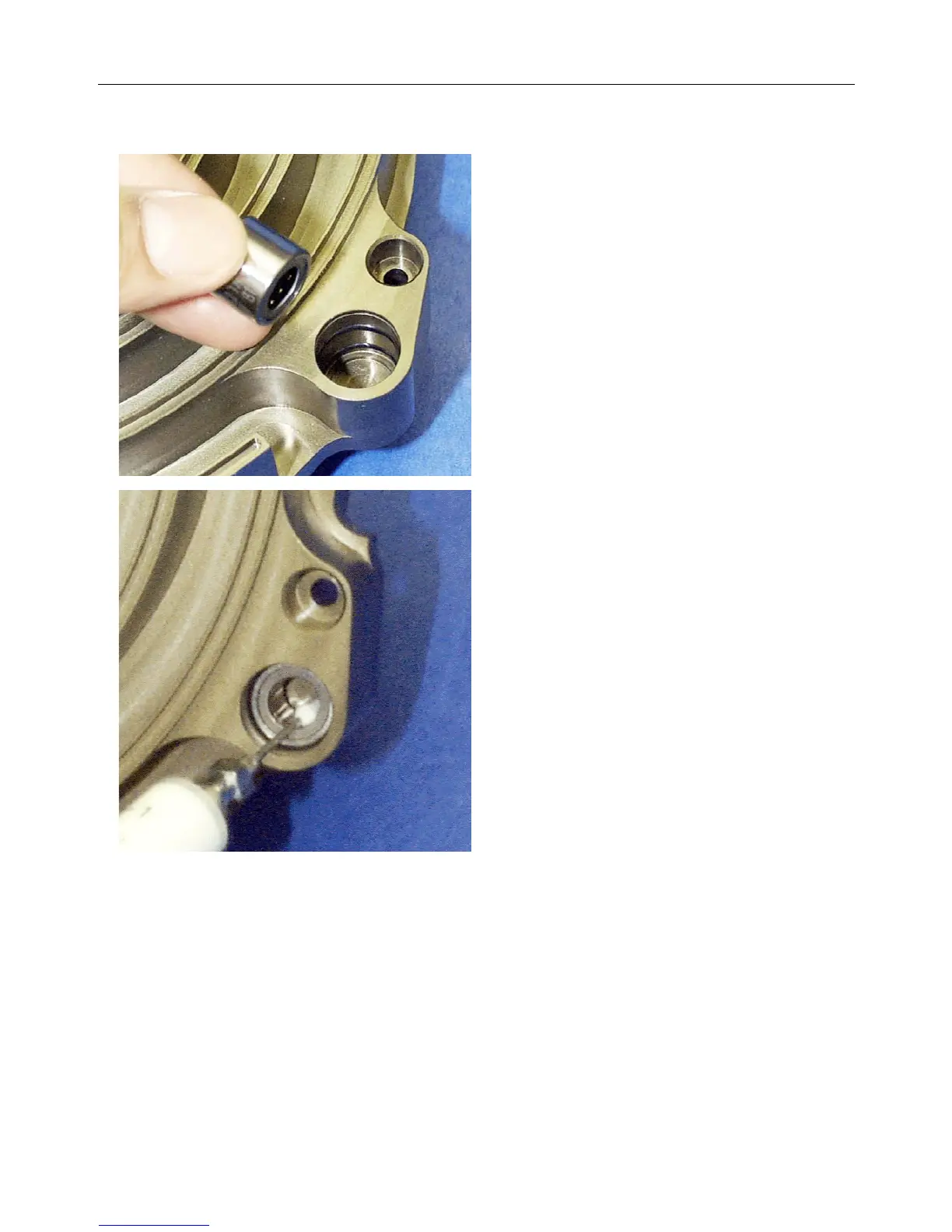

2. Push one needle bearing into each bearing
bore.
3. Squeeze a 1/4" diameter dot of Krytox into
each of the three needle bearings.
4. Smear grease over all the needles.
Orbiting Plate Assembly (continued)
To Next Page
