Remove and Disassemble the
Inboard Housing

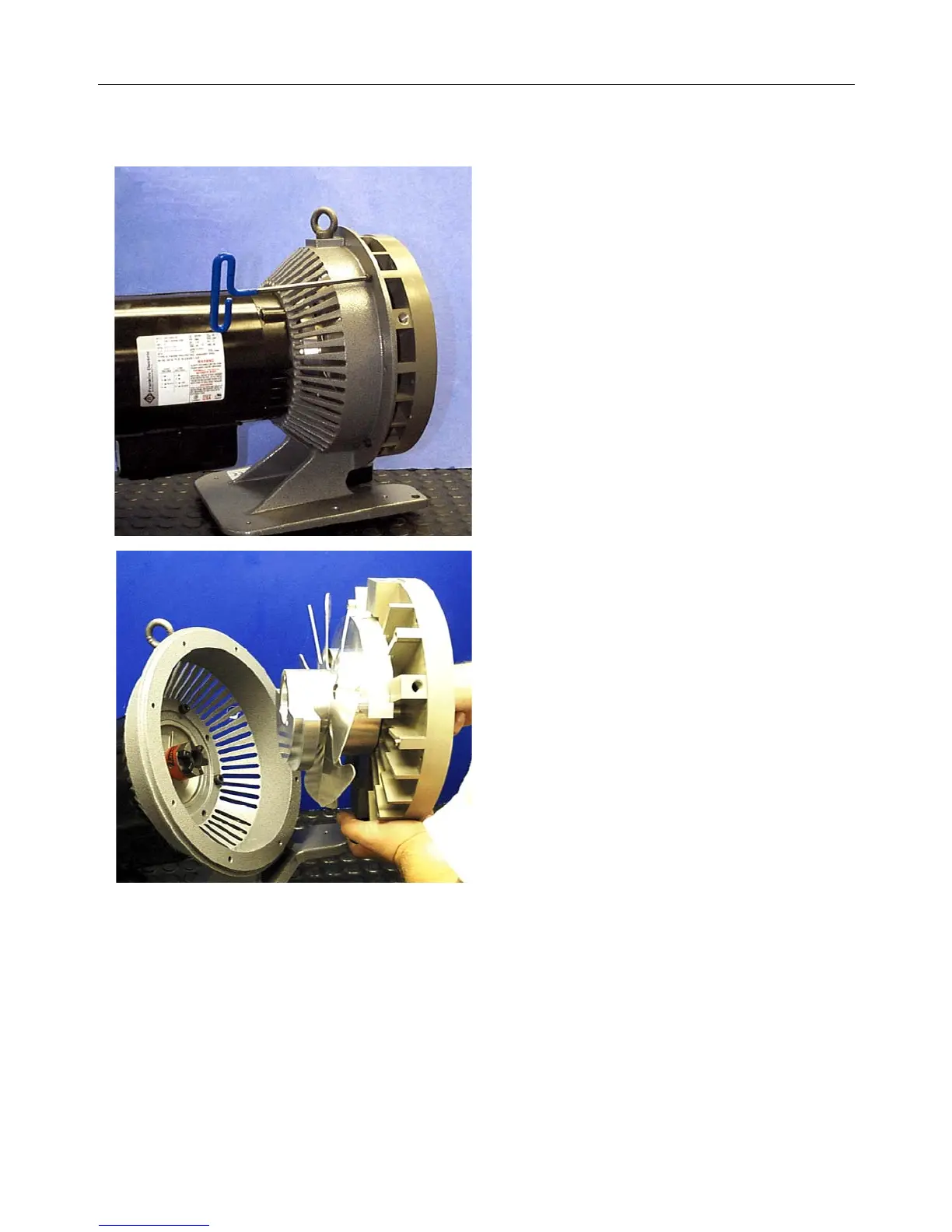

1. Remove the four M6x16 screws that attach
the inboard housing to the frame.
2. Remove the inboard housing from
the frame.
TriScroll 600 Disassembly (continued)
