Agilent Technologies TriScroll 600 Series Major Maintenance Manual

20
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4
.

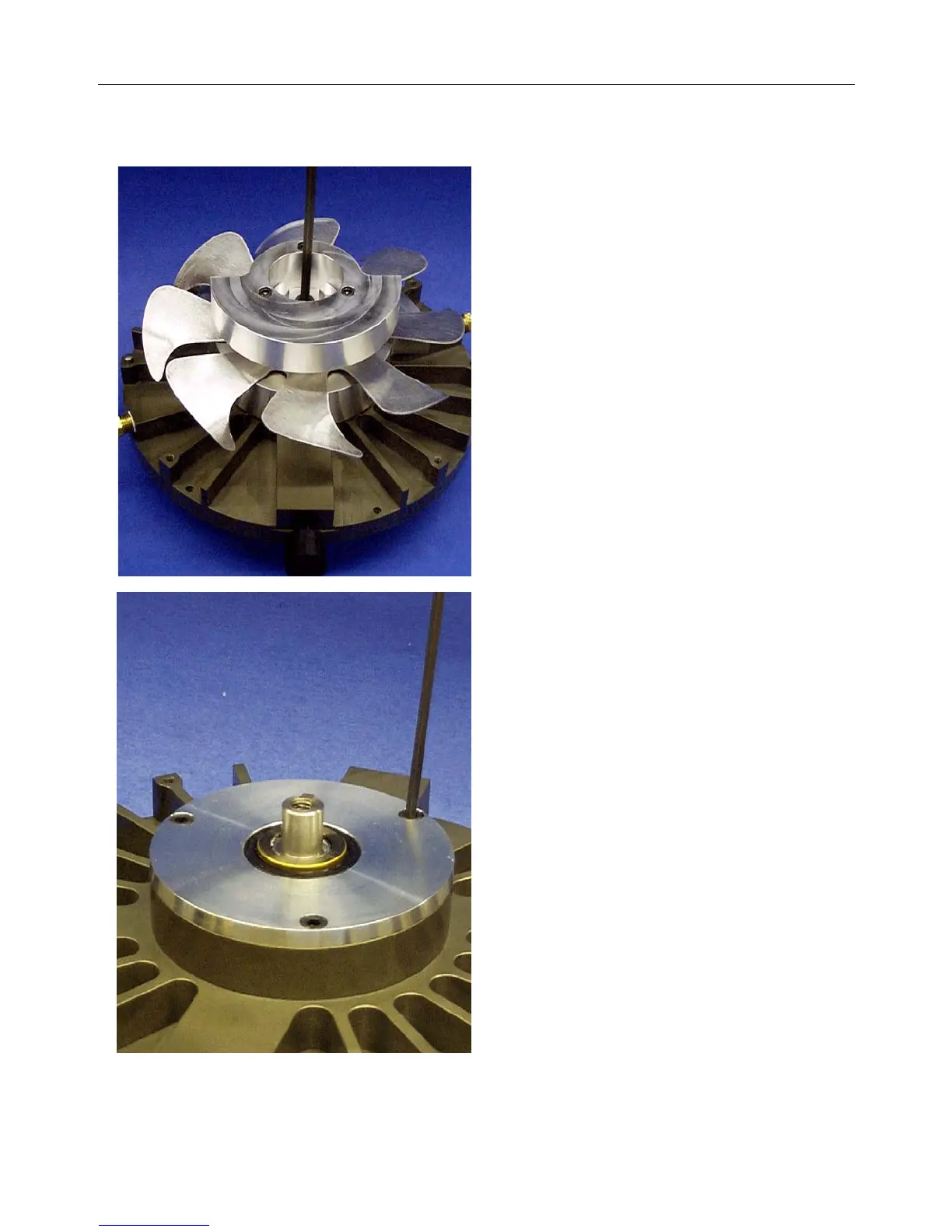

3. Remove the M8x12 screw and washer
that attach the fan assembly to the
crankshaft, then remove the fan assembly.
4. Remove the three M5x10 screws that hold
the seal housing to the inboard housing.
TriScroll 600 Disassembly (continued)
