21
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4

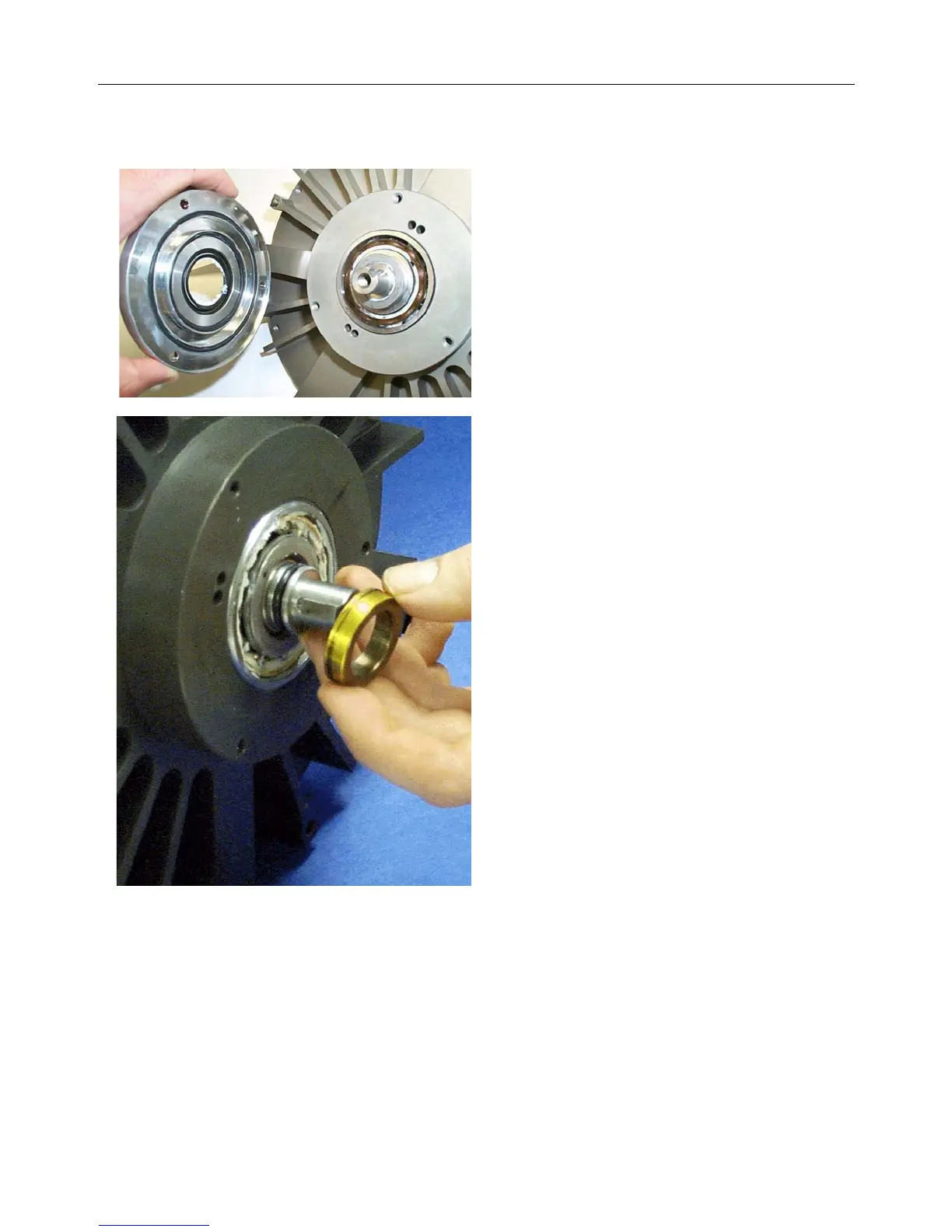

5. Remove the seal housing.
6. Remove and discard the O-rings and
the shaft seal from seal housing.
7. Remove the shaft seal spacer from the
crankshaft.
TriScroll 600 Disassembly (continued)
