TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4

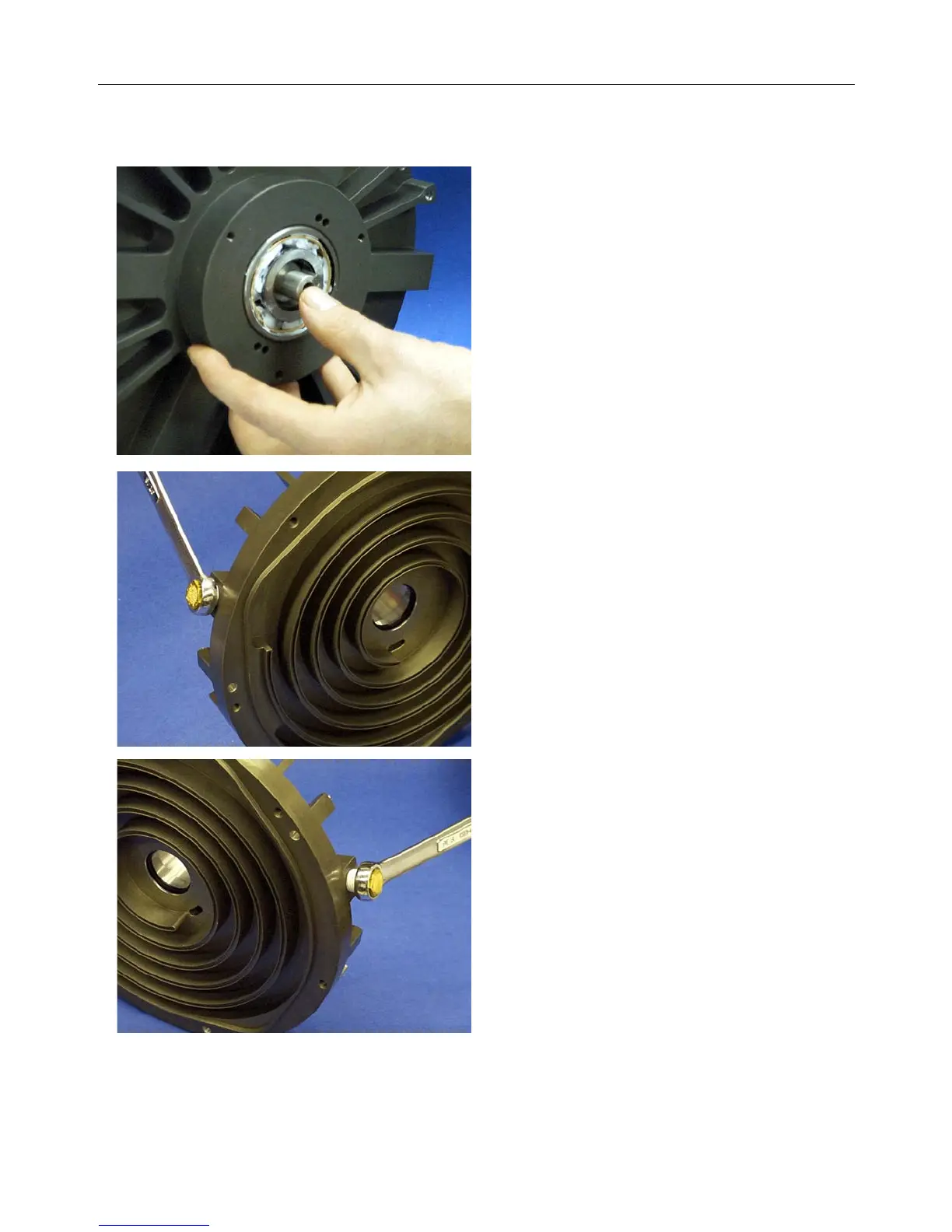

8. Push the crankshaft out of the inboard
housing.
9. Remove the key from slot in the crankshaft.
10. Remove and discard the O-ring from the
crankshaft.
11. Remove the two pipe plugs from the
inboard housing.
TriScroll 600 Disassembly (continued)
