Agilent Technologies TriScroll 600 Series Major Maintenance Manual

82
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 7 / 1 1

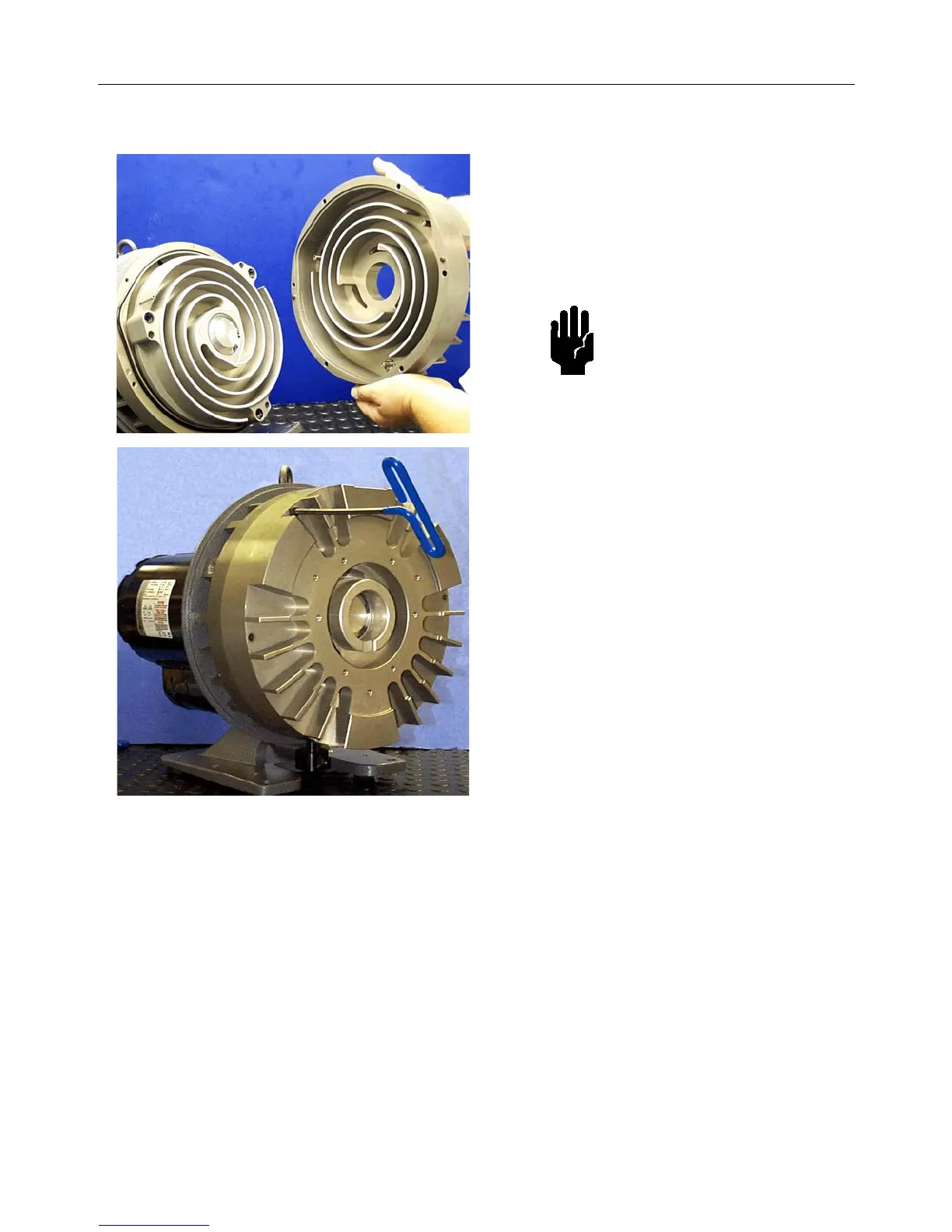

Install the Outboard Housing
1. Install the outboard housing over
the orbiting plate and against the inboard
housing, engaging the dowel pins and all
the sync cranks.
2. Secure the outboard housing to the inboard
housing with the six M6x55 screws.
3. Tighten the screws sequentially in a
diagonal pattern to 130 in-lb.
Final Assembly (continued)
CAUTION Orient all sync cranks and
the orbiting plate in the
downward position.
